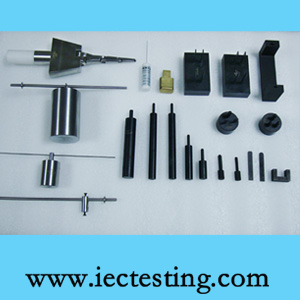

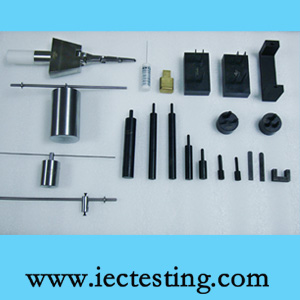

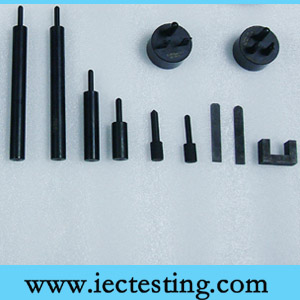

Gauge for UL498

Application:

J&Y offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.



Conforms To:
UL498



Specification:

NO.

Product    Name

Standard    Figure

Model

QTY

Old Version

New Version

1

Articulate   probe with web stop Figure 9.1 Figure 9.1

U8-F91

1

2

Probe Figure 10.1 Figure 10.1

U8-F101

1

3

Flat   probe Figure 31.1 Figure 31.1

U8-F311

1

4

Reference   plug Figure 69.1 Figure 73.1

U8-F691

1

5

Typical test   apparatus Figure 69.2 Figure 73.2

U8-F692

1

6

Improper   insertion test blades Figure 94.1 Figure 98.1

U8-F941

2

7

Test   plug Figure 105.1 Figure 109.1

U8-F1051

2

8

Test   blade Figure 105.2 Figure 109.2

U8-F1052

1

9

Receptacle   test fixture Figure 118.1 Figure 122.1

U8-F1181

1

10

Push   out tool Figure 118.3 Figure 122.3

U8-F1183

1

11

Bridge Figure 118.5 Figure 122.5

U8-F1185

1

12

Test   pin A Figure 119.1 Figure 123.1

U8-F1191

1

13

Test   pin B Figure 119.2 Figure 123.2

U8-F1192

1

14

57g   ground pin Figure 119.3 Figure 123.3

U8-   F1193

1

15

113g   ground pin Figure 119.4 Figure 123.4

U8-   F1194

1

16

No.14AWG   test pin Figure 129.2 Figure 133.2

U8-F1292

1

17

Small   test probe Figure 132.1 Figure 136.1

U8-F1321

1

18

Fixture   for assembly security test Figure 144.2 Figure 165.2

U8-F1442

1

19

Standard grounding pin Figure SD 5.1 Figure SD 5.1

U8-SD51

1

20

Standard grounding pin Figure SD 13.1 Figure SD 13.1

U8-SD131

1

21

Oversize   grounding pin Figure SD 13.2 Figure SD 13.2

U8-SD132

1
