IEC60061-3 E lamp cap gauge list
IEC60061-3 E lamp cap gauge list
| E27 lamp cap gauge | ||
| SC-E27C1 | IEC60061-3,7006-27B-1 | “Go”gauges for E27 caps on finished lamps |
| SC-E27C2 | IEC60061-3,7006-28A-1 | “Not Go”gauges for E27 caps on finished lamps |
| SC-E27C3 | IEC60061-3,7006-27C-1 | “Go”gauges for dimension “S1” of E27 caps on finished lamps |
| SC-E27C4 | IEC60061-3,7006-50-1 | Gauge for finished lamps fitted with E27 caps for testing contact making |
| SC-E27C5 | IEC60061-3,7006-51A-2 | Gauge for E27 caps on finished lamps for testing port. Against acc. Contact during insertion |
| SC-E27C6 | IEC60061-3,7006-51-2 | Gauge for caps on finished lamps for testing port. Against acc. Contact E27 51*39 |
| SC-E27C7 | IEC60968Fig2 | Gauge (holder) for torsion test on lamps with screw caps |

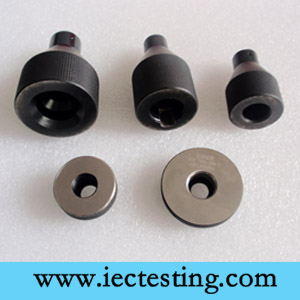

| E14 lamp cap gauge | ||
| SC-E14C1 | IEC60061-3,7006-27F-1 | “Go”gauges for E14 caps on finished lamps |
| SC-E14C2 | IEC60061-3,7006-28B-1 | “Not Go”gauges for E14 caps on finished lamps |
| SC-E14C3 | IEC60061-3,7006-27G-1 | “Go”gauges for dimension “S1” of E14 caps on finished lamps |
| SC-E14C4 | IEC60061-3,7006-54-2 | Gauge for finished lamps fitted with E14 caps for testing contact making |
| SC-E14C5 | IEC60061-3,7006-55-2 | Gauge for finished lamps fitted with E14 caps for for testing protection against accidental contact |
| SC-E14C6 | IEC60238 FIG 11 | E14 Test Cap for temperature test 14.4 and 19.3 of IEC60238 |
| E12 lamp cap gauge | ||
| SC-E12C1 | IEC60061-3,7006-27H-1 | E12 “Go”gauges for E12 caps on finished lamps |
| SC-E12C2 | IEC60061-3,7006-28C-1 | E12 “Not Go”gauges for E12 caps on finished lamps |
| SC-E12C3 | IEC60061-3,7006-27J-1 | E12 Additional “Go” gauge for caps on finished lamps E12 |
| SC-E12C4 | IEC60061-3,7006-32-1 | E12 Gauge for finished lamps fitted with E12 caps for testing contact making |
| E40 lamp cap gauge | ||
| SC-E40C1 | IEC60061-3,7006-27-7 | E40 “Go”gauges for E40 caps on finished lamps |
| SC-E40C2 | IEC60061-3,7006-28D-1 | E40 “Not Go”gauges for caps on finished lamps |
| SC-E40C3 | IEC60061-3,7006-52-1 | Gauge for finished lamps fitted with E40 caps for testing contact making |
| SC-E40C4 | IEC60061-3,7006-53-1 | Gauge for finished lamps fitted with E40 caps for testing protection against accidental contact |
| E39 lamp cap gauge | ||
| SC-E39C1 | IEC60061-3,7006-24B-1 | E39 “Go”gauges for E39 caps on finished lamps |
| SC-E39C2 | IEC60061-3,7006-24C-1 | E39 “Not Go”gauges for E39 caps on finished lamps |
| SC-E39C3 | IEC60061-3,7006-24A-1 | E39 Gauge for finished lamps fitted with E39 caps for testing contact making |
| E26 lamp cap gauge | ||
| SC-E26C1 | IEC60061-3,7006-27D-3 | E26″Go” gauge for caps E26,E26/50*39,E26/51*39. Max. dimensions of the screw thread |
| SC-E26C2 | IEC60061-3,7006-29L-4 | E26″Not Go” gauge for caps E26,E26/50*39,E26/51*39. E26 Max. major diameter of the screw thread |
| SC-E26C5 | IEC60061-3,7006-29A-2 | E26 Gauge for caps on finished lamps for testing protection against accidental contact E26d |
| SC-E26C3 | IEC60061-3,7006-29-3 | E26 Gauge for testing contact-making of lamps fitted with caps E26, E26/50*39, E26/51*39 & E26d（USD) |
| SC-E26C4 | IEC60061-3,7006-29-3 | E26 Gauge for testing contact-making of lamps fitted with caps E26, E26/50*39, E26/51*39 & E26d(JAPAN) |
| SC-E26C6 | IEC60061-3,7006-29B-2 | E26 Gauge with reference diameter of 23mm for caps E26d |
| SC-E26C7 | IEC60061-3,7006-29C-2 | E26 Gauge with reference diameter of 13.2mm for caps E26d |
| SC-E26C8 | IEC60061-3,7006-29D-1 | E26 Gauge with reference diameter of 10.4mm for caps E26d on finished lamp |
| E17 lamp cap gauge | ||
| SC-E17C1 | IEC60061-3,7006-27K-1 | E17 “Go”gauges for E17 caps on finished lamps |
| SC-E17C2 | IEC60061-3,7006-28F-1 | E17 “Not Go”gauges for E17 caps on finished lamps |
| SC-E17C3 | IEC60061-3,7006-26D-1 | E17 Gauge for finished lamps fitted with E17 caps for testing contact making |
| E5 lamp cap gauge | ||
| SC-E5C1 | IEC60061-3,7006-25D-1 | “Go”gauges for E5 caps on finished lamps |
| SC-E5C2 | IEC60061-3,7006-25E-1 | “Not Go”gauges for E5 caps on finished lamps |
| E10 lamp cap gauge | ||
| SC-E10C1 | IEC60061-3,7006-27A-2 | “Go”gauges for E10 caps on finished lamps |
| SC-E10C2 | IEC60061-3,7006-28E-1 | “Not Go”gauges for E10 caps on finished lamps |
| E11 lamp cap gauge | ||
| SC-E11C1 | IEC60061-3,7006-6-1 | “Go”gauges for E11 caps on finished lamps |
