IEC61032 Figure 16 Test probe 41

IEC61032 Figure 16 Test probe 41

IEC61032 Figure 16 Test probe 41

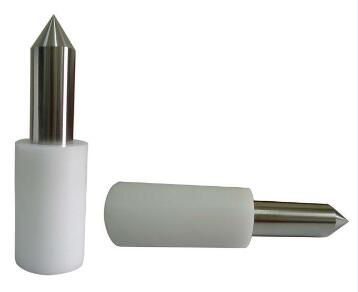

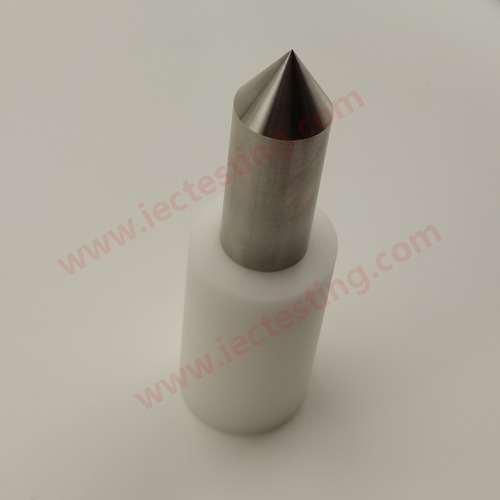

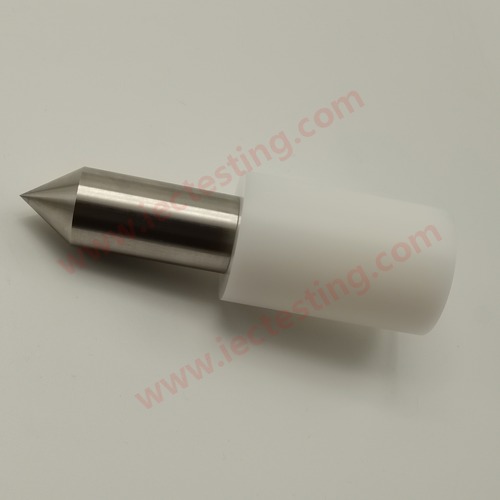

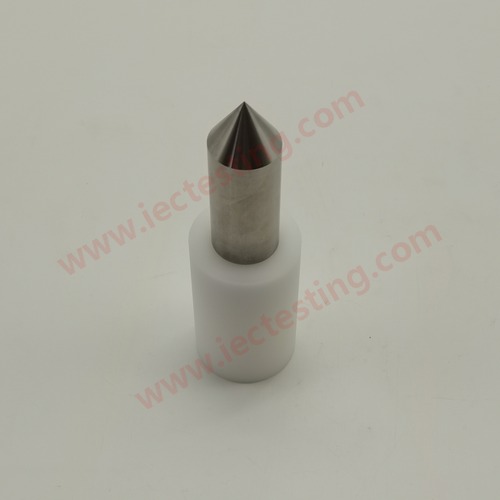

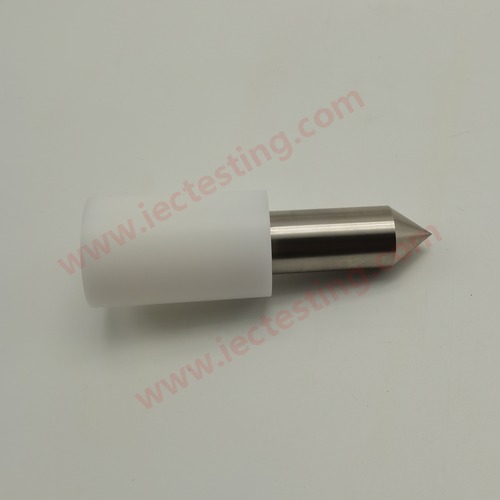

(Test Thorn Probe JY-F1641)



 The test thorn probe is intended to verify the protection against access to glowing heating elements. It complies with IEC61032 figure 16 Test probe 41, IEC60335 standard requirements.

Main specification and corresponding technical parameters:

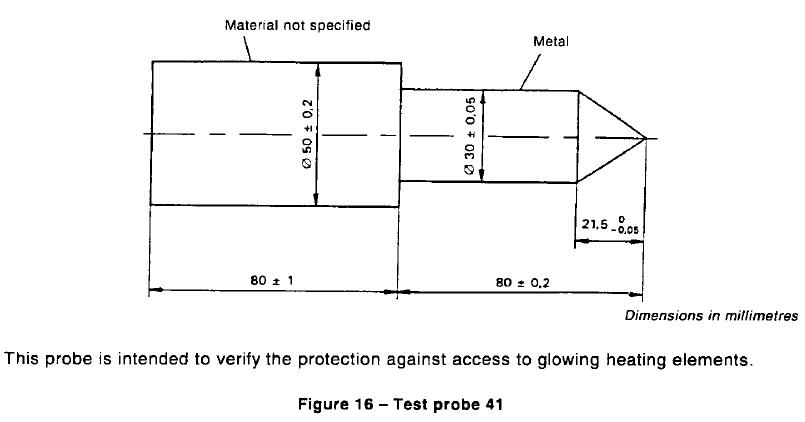

Parameters /Mode Test thorn probe JY-F1641
1 Ф30±0.05
2 21.5 0 -0.05
3 80±0.2
4 Ф50±0.2
5 80±1



Access probes to hazardous hot or glowing parts

 This test probe is intended to verify the protection against access to glowing heating elements
