IPX1 And IPX2 Drop Box Test Chambers Model: JY-IPX12C

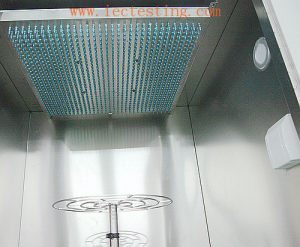

IPX1-2 Drop Box Test Chambers

IPX1-2 Drop Box Test Chambers

The drip box test is one of several methods used to test the wate rprotection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.
This test is used to meet the requirements of IPX1 and IPX2 in IEC60529. The drip box test subjects an enclosure to vertically falling drop lets much as a product might see during rain.
The test has two parts. The first has the specimen sit in the orientation of its intended use. The second has the specimen tilted 15° from vertical in four directions to simulate a blowing rain. This second test is also done with a higher flow rate of drips.

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2
IPX1& IPX2 Drip Box and IPX3&IPX4 Oscillating Tube test chamber
IPX1-2 Drop Box Test Chambers
Specifications:
1.The drip box sizes can make different size according to request.
2.The size of the drip box is different depending on the size of the test product.
3.the size can be customized by the customers’ need.
No. Item Parameter
1 Model SC-IPX12C-700 SC-IPX12C-600 SC-IPX12C-200
2 Drip Box Size 700×700 mm(or other size) 600×600 mm(or other size) 200×200 mm(or other size)
3 Inner Dimensions 900×900×1050mm 800×800×1000mm 350×350×750mm
4 Outer Dimensions 1400×1100×1900mm 1250×1000×1750mm 550×550×1500mm
5 Turntable Diameter ¢600 mm ¢600 mm ¢200 mm
6 Turntable Max Loading Weight 50 kg 50 kg 20 kg
7 Turntable Height 350-700 mm( adjustable) 350-700 mm( adjustable) 200-400 mm
8 Nozzle Hole ¢0.4mm ¢0.4mm ¢0.4mm
9 Nozzle hole distance 20×20 mm 20×20 mm 20×20 mm
10 Drip Capacity 1-5 mm/min(±0.5mm/min) 1-5 mm/min(±0.5mm/min) 1-5 mm/min(±0.5mm/min)
11 Adjustment method Automatic or Manual Automatic or Manual Automatic or Manual
12 Drip Box Travel stationary stationary stationary
13 Rotation Speed 1 r/min 1 r/min 1 r/min
14 Angle 0° or 15° 0° or 15° 0° or 15°
15 Test time 0-999 min 0-999 min 0-999 min
16 Protection Leakage, water shortage, short circuit Leakage, water shortage, short circuit Leakage, water shortage, short circuit
17 Power 250V or 110V,1KW 250V or 110V,1KW 250V or 110V,1KW
18 Weight 185 kg 150kg 100kg



IPX1 And IPX2 Drop Box Test Chambers  Features:

—Choice of three drip box sizes (can make different size according to request)

—Stainless steel nozzles and brass base removable for cleaning or replacing

—Under nozzle equipped with stainless steel mesh, safety prevents operator head accidentally touch needle injury

—Automatic air pressure cleaning nozzle and dry function, to avoid blocking nozzle.

—Drip flow rate precisely controlled by flow meter with the regulator periodically

—Filter can remove impurities from the water, filter cartridge can be replaced

—Motorized turntable connected to instrument controller

—Turntable tiltsto 15°

—Turntable electrical part of the whole seal to prevent leakage of water

—Stainless steel turntable with easy height adjustment

—Turn tableis equipped with waterproof; the universal adaptor can be used in the sample charged test;

—Turntable has four wheels with brake activity, convenient mobile and fixed.

—The inner chamber material is stainless steel.

—This product is designed with a welded steel frame, steel panels, all powder coated blue, with adjustable feet.
