IPX5-6 Jet Test Set

IPX5-6 Jet Test Set

IPX5-6 Jet Test Set

IPX5-6 Jet Test Set

IPX5-6 Jet Test Set

For checking the protection against ingress of water to prove the degrees of protection with the second characteristic numerals 5 “Protected against water jets” or 6 “Protected against powerful water jets”

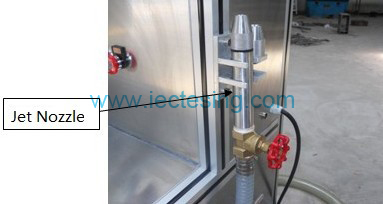

IPX5,IPX6-Jet nozzle

IPX56 Jet nozzle



Application

IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100l/min.

Instrument

The JY-IPX5-6 Jet Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Features

—Stainless steel nozzles

—Valve for water flow regulation and shut off

—Pressure gauge

—Hose connector

—Interchangeable nozzles

Conforms To

IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1

Specifications

Nozzle Diameter : 6.3mm(IPX5)   12.5mm(IPX6)

Pressure Gauge : 0 – 1.6 bar
