Spring Hammer Test Apparatus

Spring Hammer Test Apparatus (1)

Spring Hammer Test Apparatus:

This spring impact test  apparatus conforms to the standard requirements of IEC60068-2-63、IEC60068-2-75、IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures.

After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

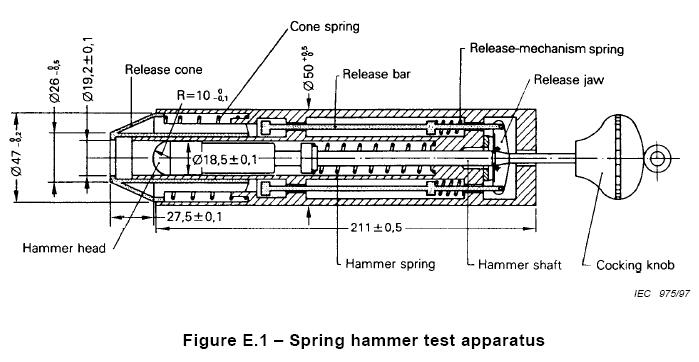

Spring Hammer Test Apparatus Body: Includes release mechanism and striking element guide, mass 1250 g.
Spring Hammer Striking Element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250g
Release Cone: mass 60g, 10N release force



Spring Hammer Test Apparatus  Parameters:



Model JY-CJ101 JY-CJ102 JY-CJ105 JY-CJ106
Impact energy J 0.14、0.2、0.35、0.5、0.7、1 2 0.2、0.35、0.5、0.7、1 0.14、0.2、0.35、0.5、0.7、1
Allowable error ±10% ±10% ±10% ±10%
The weight of Impact element 250g±5g 500g±5g 250g±5g 250g±5g
The power <10N <10N <10N <10N
The whole weight 1250g±10g 1500g±10g 1450g±10g 1450g±10g

 Spring Hammer Test Apparatus Picture:

Spring Hammer Test Apparatus (4)
Spring Hammer Test Apparatus
Spring Hammer Test Apparatus (3)
Spring Hammer Test Apparatus
Spring Hammer  impact Test Apparatus
Spring Hammer impact Test Apparatus
