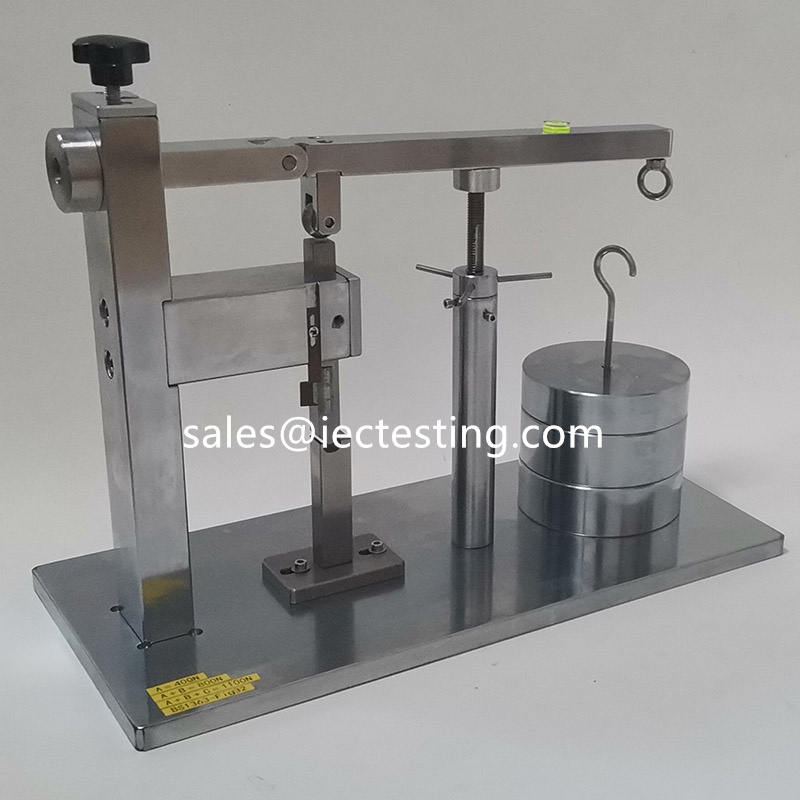

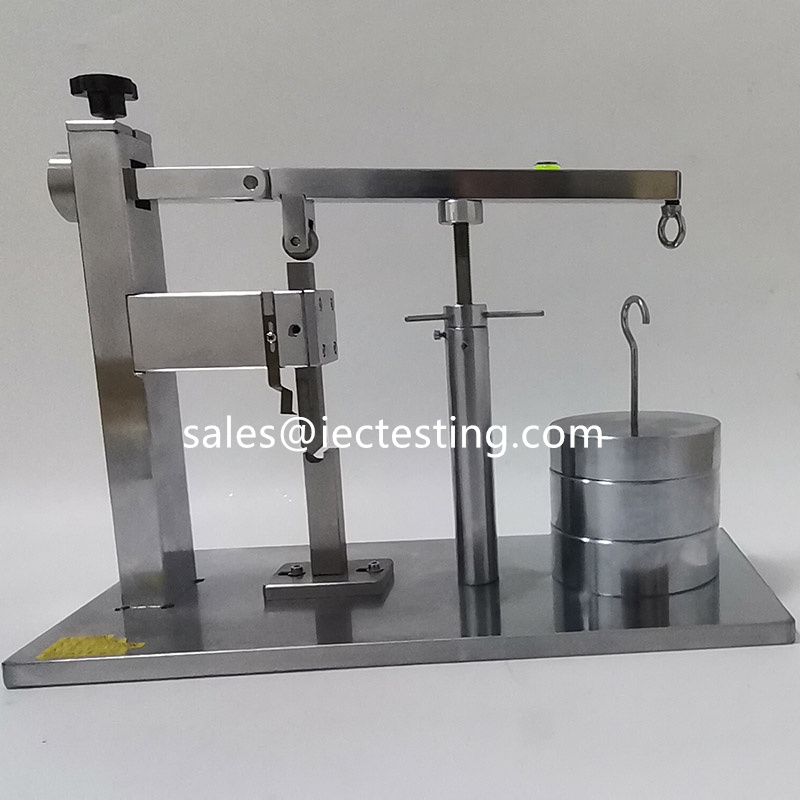

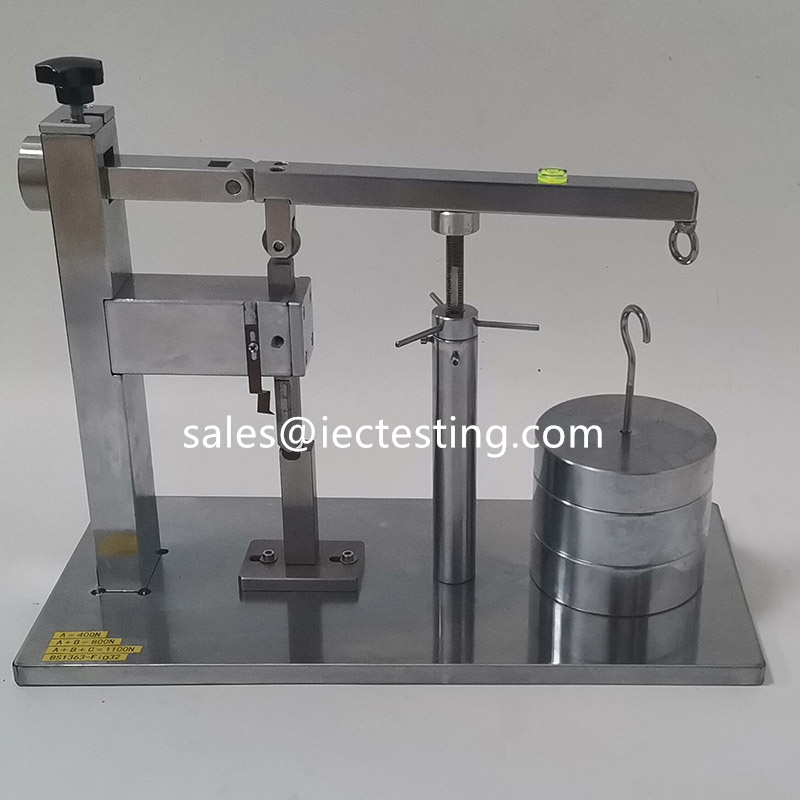

BS1363 Figure 32 Apparatus for tests on adaptor pins

BS1363 Figure 32 Apparatus for tests on adaptor pins

BS1363 Figure 32 Apparatus for tests on adaptor pins

NOTE The body of the adaptor should be supported so that the face of the plug is
held in contact with the face of the fixed anvil

The moving anvil should be aligned in the centre of the gap in the fixed anvil.

a) An adaptor pin under test
b) Details of anvils


1 Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size
of plugs and sockets conform to BS 1363 standards. And the mainly application industries is
electronics, electrical applicances, plugs and sockets and other similar areas.

2 Features
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
