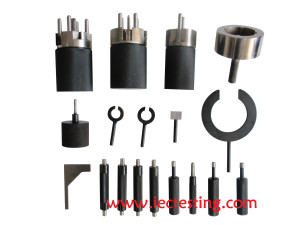

CEE7 gauge

CEE7 gauge

Gauge (CEE 7) (ModelSC -CCXX)

Application:

Shice test equipments offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 53-58 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.



Conforms To:

CEE 7



Specification:

Product Model Standard            Product Name
SC-CC1 CEE7/C1 10/16A 250V two-pole socket-outlets, a1=6.0, a1=5.8Gauges c1 for size of entry holes for plug pins
SC-CC2 CEE7/C2A.B 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact; Gauges c2 for minimum opening of contact tubes
SC-CC3 CEE7/C3 Gauge
SC-CC4 CEE7/C4 Gauge
SC-CC6 CEE7/C6A.B Gauge
SC-CC7 CEE7/C7A.B.C.D 10/16A 250V two-pole socket-outlets
Gauges c7 for distance to point of first contact
SC-CC8 CEE7/C8 Gauge
SC-CC9 CEE7/C9A.B 2.5A 250V and 10/16A250V two-pole plugs and 10/16A
250V two-pole socket-outlets with pin-type earthing contact
Gauges c9 for pin diameter
SC-CC10 CEE7/C10A.B 10/16A 250Vtwo-pole plugs Gauges c10 for pin spacing
SC-CC11 CEE7/C11 10/16A 250V two-pole socket-outlets and two-pole plugs
with pin-type earthing-contact
Gauge c11 for maximum opening of contact tubes
SC-CC12 CEE7/C12 10/16A 250V two-pole plugs with side earthing-contacts
Gauge c12 for interchangeability
SC-CC13 CEE7/C13 2.5A 250V two-pole plugs for class ii appliances
Gauge for interchangeability
SC-CC14 CEE7/C14 Gauge
SC-CC15 CEE7/C15 16A Gauge
SC-CC16 CEE7/C16 16A Gauge
SC-CC18 CEE7/C18 10/16A 250V two-pole socket-outlets without earthing contact
Gauge for checking impossibility of single-pole insertion
of plugs
SC-CC19 CEE7/C19A.B.C 2.5A 250V and 10/16A 250V two-pole plugs
Gauges for checking impossibility of single-pole insertion
of plugs into socket-outlets
SC-CC19A CEE7/C19a Gauge
SC-CC21 CEE7/C21 16A Gauge
SC-CF23 CEE7/Fig.23 16A Pressure test device
