Hammer Test Device IEC Test Equipment Adhesive Force Test Of Hot Dip Galvanizing Coating

22

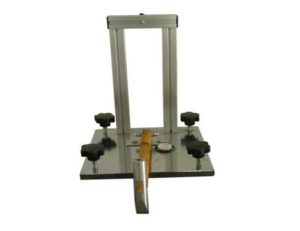

Hammer Test Device details:



This test device confirms to the standard of YDT757 drop hammer test way. It’s suitable for the adhesive force test of hot dip galvanizing coatings. During the test, the free dropping hammer is used to hit the zinc coating to test whether the zinc coating confirms to the standard requirement. This item is appropriate for the manufacture factory like the iron tower and the quality testing department to process quality test and control.



33

Hammer Test Device Technical parameters:



The mass of hammer 210g±1g
The vertical height from the hammer centre line to the base surface 300mm±1mm
The material of the hammer handle  oak

44

Hammer Test Device Using method:



Using the gradienter to adjust the device and make it in the horizontal station. Then adjust the specimen and make sure that the distances from the hit points to the sample edge, corner and top side are not less than 10 mm. The hammer head is faced to the centre of rack.

Make the hammer fall down freely after the hammer handle is vertical to the base. The hammer parallelly hit five points with 4mm gaps. And the hit points shall not be repeated in the same place. We can check the impact situation to judge whether the zinc coatings confirm the standard requirements.

Hammer Test Device drawing:

Hammer Test Device drawing

Hammer Test Device drawing

Hammer Test Device more photoes:

Adhesive Force Tester

Adhesive Force Tester

Hammer Test Device

Hammer Test Device
