IEC 60068-2-75 Striking Elements

IEC 60068-2-75 Striking Elements

Product details:

 This series of striking elements are manufactured in accordance with the standard requirement of IEC60068-2-75 chat1and chat 2. When the striking element is released in a height, the corresponding impact energy can be produced. It can be used for the Oscillating impact test with the pendulum.



Technical parameters:

Model (energy) 2J 5J 10J 20J 50J
The equivalent mass/kg 0.5 1.7 5 5 10
The height of dropping ±1%/mm 400 300 200 400 500

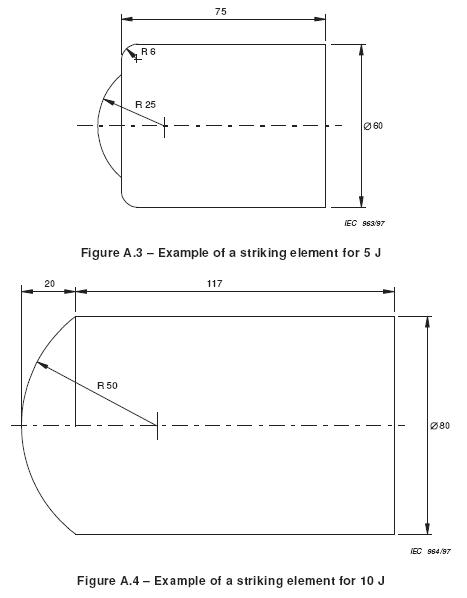

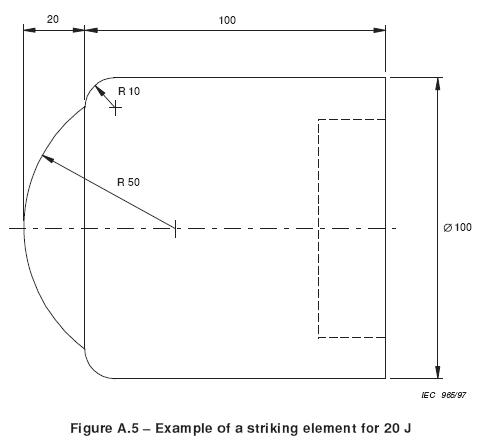

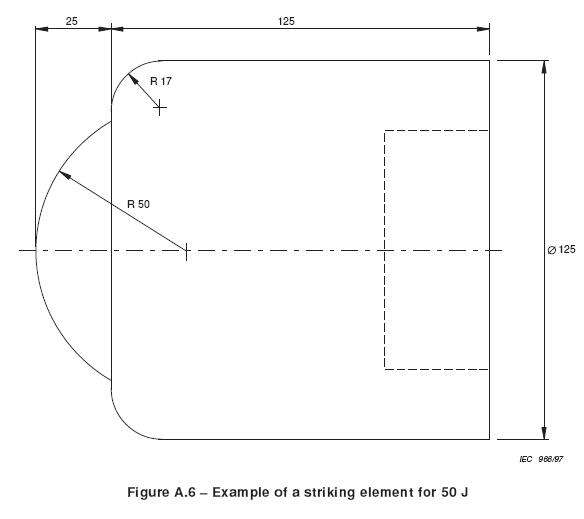

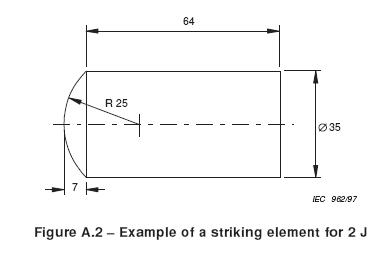

The diameter/mm 35 60 80 100 125
Material stainless steel
IEC 60068-2-75 Striking Elements
IEC 60068-2-75 Striking Elements

Specifications:

Test object electric cabinet
Reference standard IEC 60068-2-75
Test Merchanical Impact test
Impact energy 2J, 5J, 10J, 20J, 50J
Hardness HRE 100
Material Stainless steel
Release mode manual
Color silver
