IEC61032 Figure 14 Test probe31

Food waste IEC61032 figure 14 probe 31

IEC61032 Figure 14 Test probe31 , Food waste test probe 31

Food Waste Probe 31 JY-F1431



Food waste IEC61032 figure 14 probe 31
Food waste IEC61032 figure 14 probe 31

Product information:

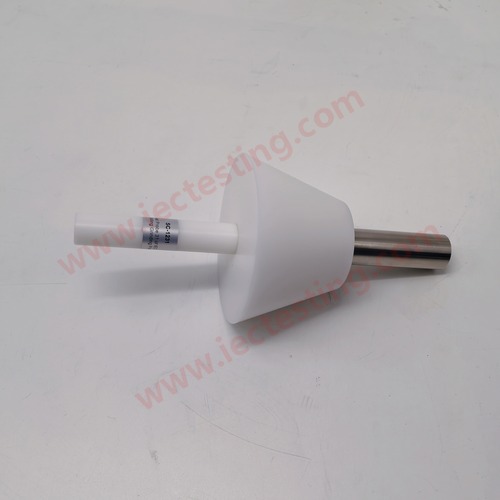

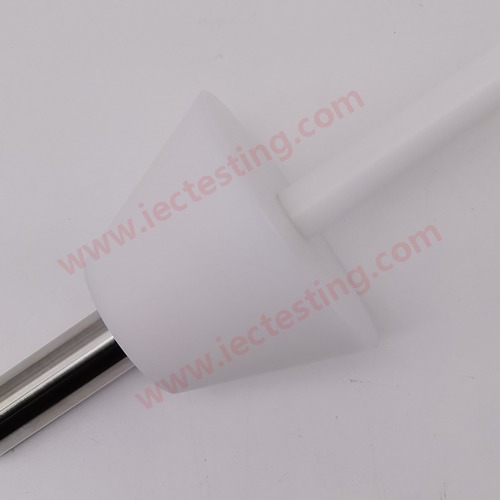

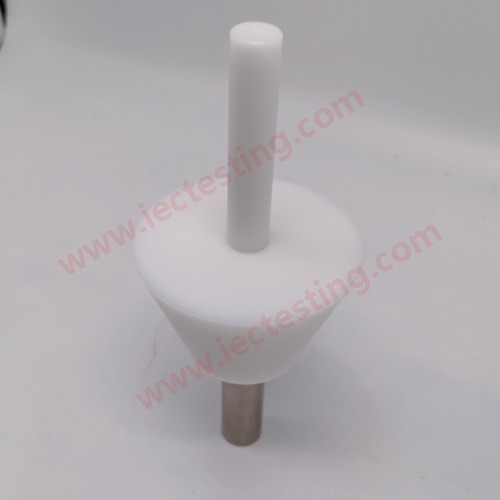

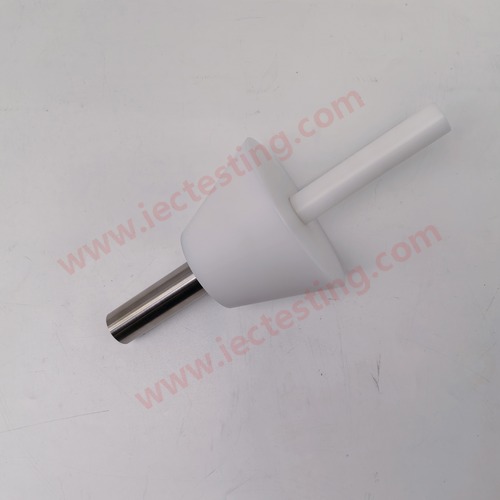

 Food waste probe 31 confirms to IEC61032 figure 14 standard. It is used for checking food waste disposal units of milling system of hazardous mechanical parts whether is touched or not.

Rod: Ø25mm, 80mm long, interchangeable metal or Delrin probe. It conforms to the IEC61032 Test probe 31.The handle is made of nylon,tip is made of stainless steel.

Customizable: Euipped with threaded hole of M6 at the end of the handle(coordinate with pull and push dynamometer)

Main specification and corresponding technical parameters:

Parameters /Model Food waste probe 31 JY-F1431
1 Ф25±0.2
2 80±0.2
3 Ф60±0.2
4 Ф110±0.2
5 150±0.2



Figure14 probe31
Food waste IEC61032 figure 14 test probe 31

Access probes to hazardous mechanical parts

This probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
