Single Energy And Adjustable Energy Spring Hammers For Impact Tests

Product details:



This spring impact test conforms to the standard requirements of IEC60068-2-63,IEC60068-2-75,IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures.  After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

Body: Includes release mechanism and striking element guide, mass 1250 g.
Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
Release Cone: mass 60 g, 10N release force



Technical parameters:



Model JY-1 JY -2 JY -5 JY -6
Impact energy J 0.14,0.2,0.35,0.5,0.7,1 2 0.2,0.35,0.5,0.7,1 0.14,0.2,0.35,0.5,0.7,1
Allowable error ±10% ±10% ±10% ±10%
The weight of Impact element 250g±5g 500g±5g 250g±5g 250g±5g
The power <10N <10N <10N <10N
The whole weight 1250g±10g 1500g±10g 1450g±10g 1450g±10g

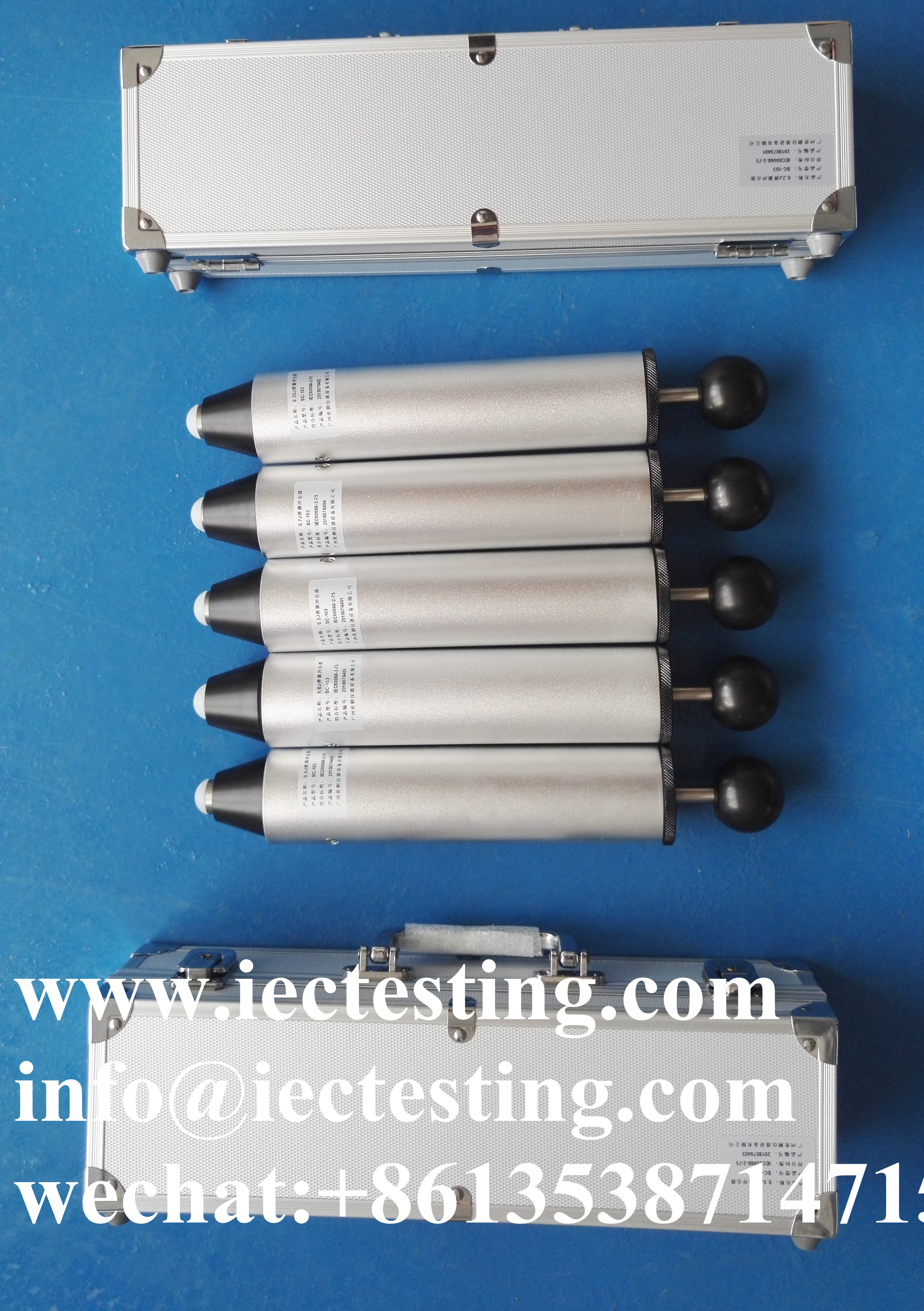

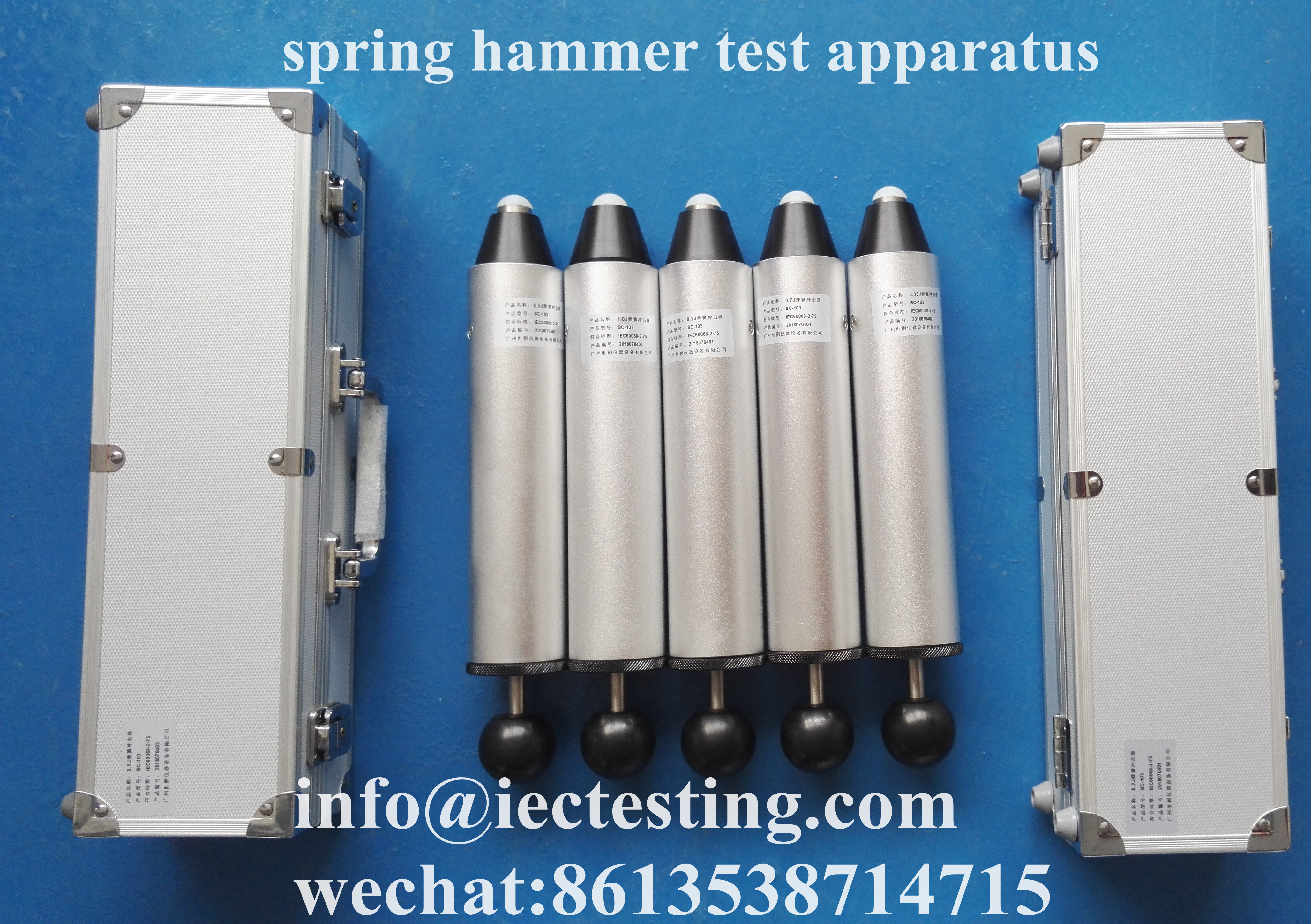

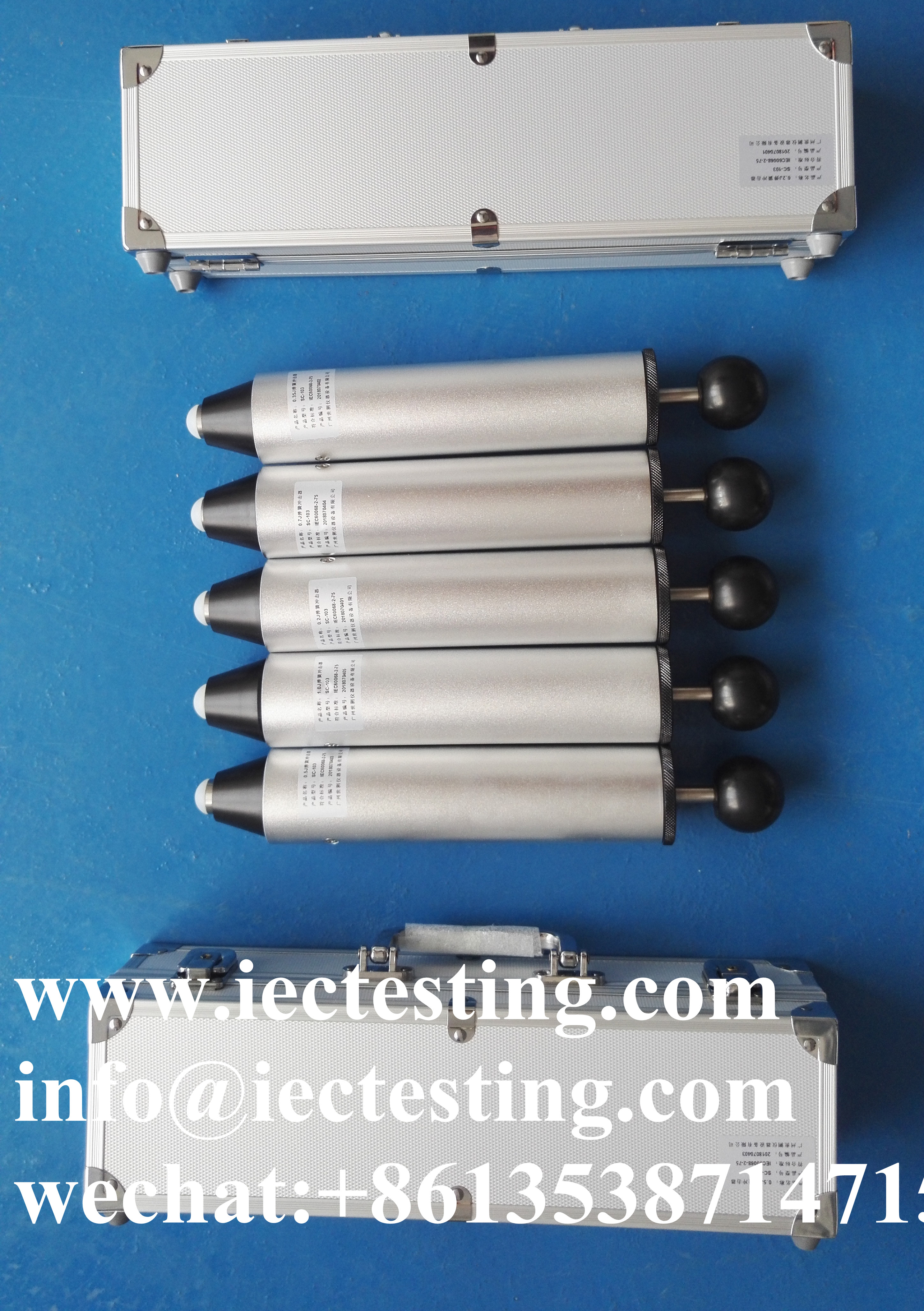

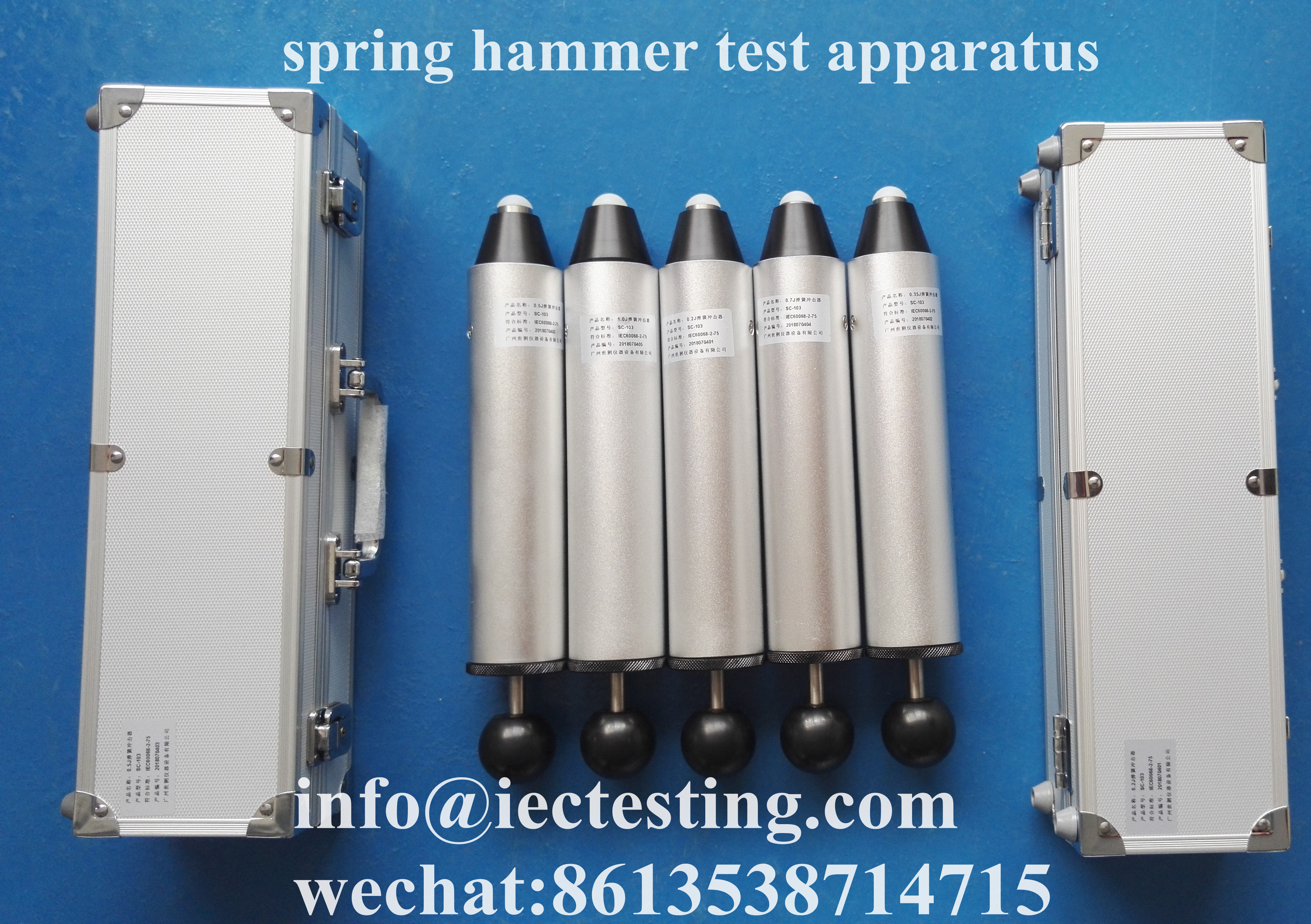

 Picture view:
