IEC 60335 Figure 7 Test Finger Nail （SC-T30）
Product Overview:
The test finger nail complies with the IEC 60335-1 Clause 21.2,22.11 and etc.. It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not. Three kinds of force can be applied. They are 10N, 20N, 30N.

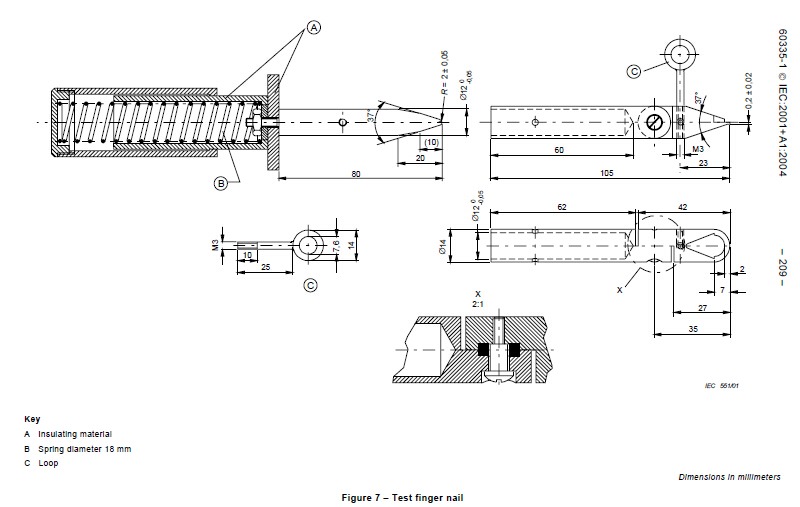

The test fingernail of Figure 7 is applied to the scratched surface with a force of approximately 10 N. No further damage, such as separation of the material, shall occur.
Technical Parameters:
| Probe material | Stainless steel |
| Handle material | Nylon |
| Applied force | Built-in 10N, 20N, 30N, 40N, 50N |
| Probe length | 80 mm |
| Angle of the finger nail | 37° |
| Diameter of the test finger | Φ12 mm
|
