Tumbling Barrel Tester
- PRODUCT DETAIL
Product details:
This tester conforms to the standard requirement of VDE0620 、IEC68-2-32、BS1363.1、EN50075、UL60730. it is used to check the drop resistance of electrical accessories. The falling times can be preset. The device stops working automatically when the preset times are reached.
Technical parameters:
| Model | TB-1 | TB-2 |
| Power Supply | 220V 50Hz or 115V 60Hz | 220V 50Hz or 115V 60Hz |
| Speed of rotation | 5 r/min | 5 r/min |
| Feel times | 10 times/min | 10 times/min |
| counter | 0~9999 | 0~9999 |
| Material | 3 mm steel | 3 mm steel and Block of wood and plastics laminated sheet |
| Height | 650 mm | 675 mm（or 1175） |
| Dimension | W*D*H=630mm x 600mm x 1250mm | W*D*H=630mm x 600mm x 1250mm |
| Chute Length | 275mm | 275mm |
| Conforms to standard | VDE0620.1
IEC60598 |
IEC60068-2-32, IEC60884.1, EN50075 |
 |
 |
| Model | TB-3 | TB-4 |
| Power Supply | 220V 50Hz or 115V 60Hz | 220V 50Hz or 115V 60Hz |
| Speed of rotation | 5 r/min | 5 r/min |
| Feel times | 10 times/min | 10 times/min |
| counter | 0~9999 | 0~9999 |
| Material | 19 mm nominal thick blockboard | 5 mm steel and hard wooden plate |
| Height | 650 mm | 1070 mm |
| Dimension | W*D*H=630mm x 600mm x 1250mm | W*D*H=630mm x 600mm x 1450mm |
| Chute Length | 275mm | 275mm |
| Conforms to standard | BS1363.1
UL60730 |
IEC60312 |
 |
 |

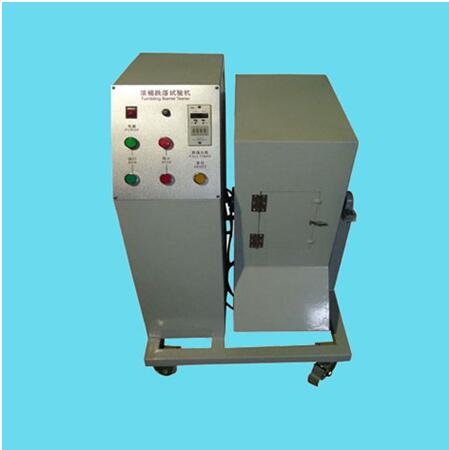

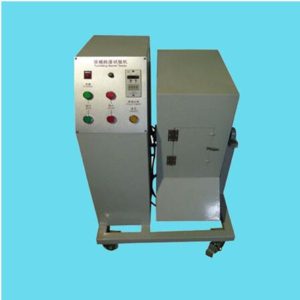

| TB-1 |  |
 |

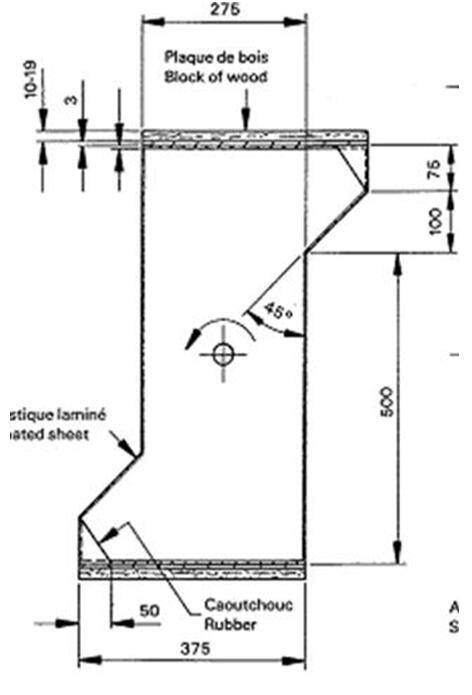

| TB-2 |  |
  |

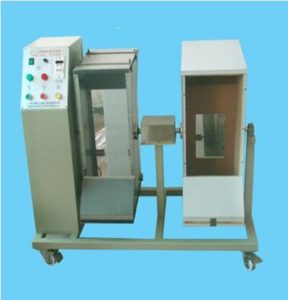

| TB-3 |  |
 |

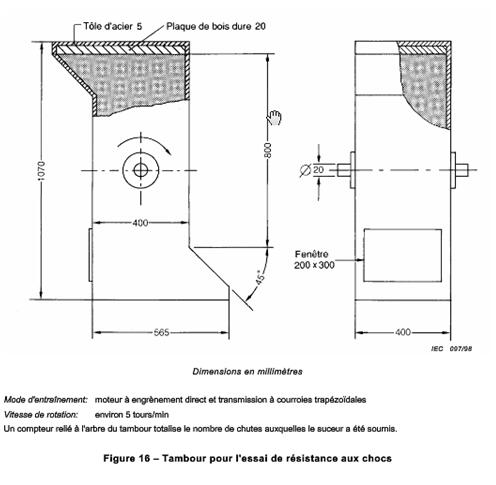

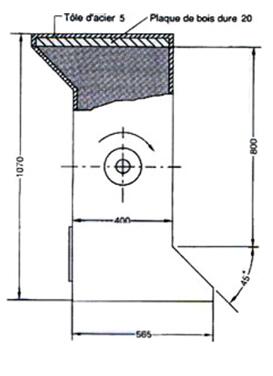

| TB-4 |  |
 |
