IPX5 and IPX6 Handheld Jet Nozzle
(Model：JY-IPX56-JN)
Application
IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100l/min.
Instrument
The JY-IPX56-JN Jet Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
Features
—Stainless steel nozzles
—Valve for water flow regulation and shut off
—Pressure gauge
—Hose connector
—Interchangeable nozzles
Conforms To
IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1
Specifications
Nozzle Diameter : 6.3mm(IPX5) 12.5mm(IPX6)
Pressure Gauge : 0 – 1.6 bar
Ordering Information
JY-IPX56-JN-1 Jet Test Set
Includes: Jet handle
Nozzle dia. 6.3mm(IPX5)
Nozzle dia. 12.5mm(IPX6)
JY-IPX56-JN-2 Jet Test Set
Includes: Jet handle
Nozzle dia. 6.3mm(IPX5)
JY-IPX56-JN-3 Jet Test Set
Includes: Jet handle
Nozzle dia. 12.5mm(IPX6)
Options: Flow meter (flow rang 10-100 liter/min)

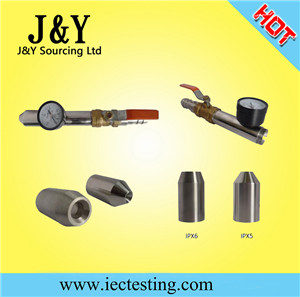

Picture view:
