AS/NZS3112 Australia Standard Plug gauge And Socket outlet gauges

1. Application:This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.2. Features:Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standa ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

1. Application:

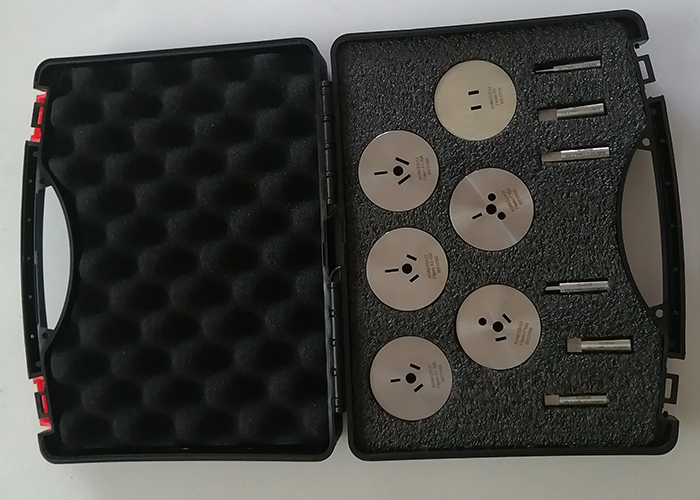

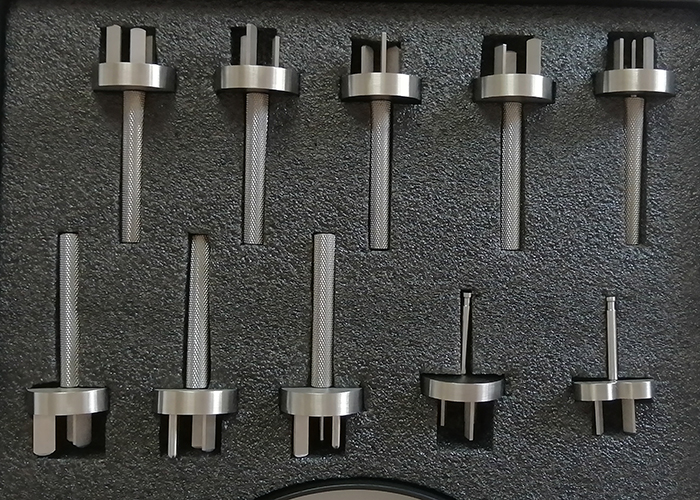

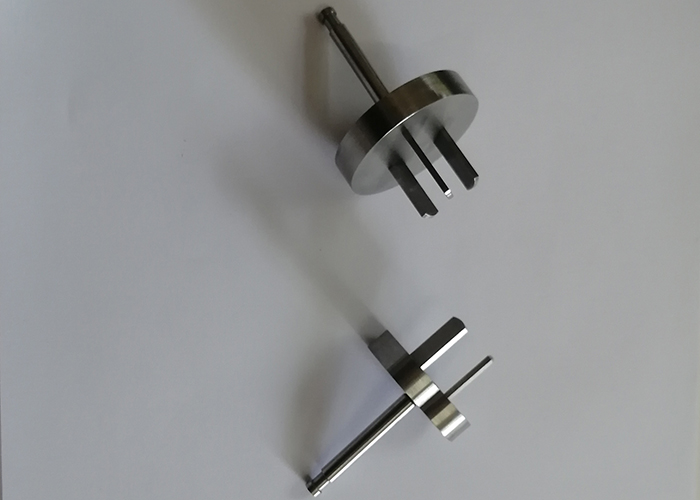

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.

Conforms To:

AS/NZS 3112

Specification:

1AS/NZS3112-Fig2.5pressure test apparatus for insulation on insulated plug pins at high temperature
2AS/NZS3112-Fig2.6impact test apparatus for insulation on insulated plug pins at low temperature
3AS/NZS3112-Fig2.9Temperature rise testing box
4AS/NZS3112-Fig2.10Copper of temperature rise testing
5AS/NZS3112-Fig2.8Plug bending test device
6AS/NZS3112-Fig3.1 a.b.cgauge for depth of no-contact test
7AS/NZS3112-Fig3.6device for checking the resistance to lateral strain (three pin gauge)
8AS/NZS3112-Fig3.7device for checking the resistance to lateral strain (two pin gauge)
9AS/NZS3112 figure A1gauge for three-pin 250 v max flat-pin plugs
10AS/NZS3112 figure B1gauge for two-pin flat-pin 125 v max. plugs (with parallel pins)
11AS/NZS3112 figure C1Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test.
12AS/NZS3112 figure D1Three-pin test plug with flat pins for abnormal insertion test.
13AS/NZS3112 figure F1Plugs and socket-outlets for use in extra-low voltage circuits
14AS/NZS3112 figure G1Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test
15AS/NZS3112-2.13.9.118N Australia plug testing device
16Item 3.3.4.1Test gauge of Minimum Pullout force
17Item 2.3.2 /figure 2.3Not go gauge of socket aperture
18Item 3.14.8.2/figure 2.1(a),(b),(c)Plug of socket temperature rise testing
19Item 2.8.1Test pin of distance testing gauge
