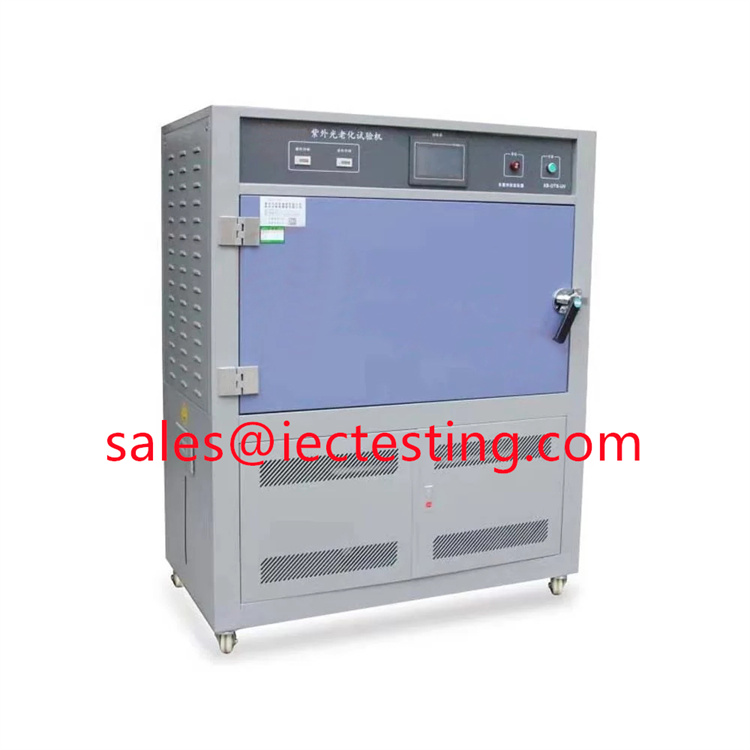

Box-Type UV Weathering Test Chamber

Box-Type UV Weathering Test Chamber



UV Weathering Test Chamber is the world’s most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It’s used widely in the industry, such as printing ink, paint, plastics, print, packaging,motor van, metal, electronics, medical, and so on.

Applications:

  • Printing
  • Ink
  • Paint
  • Plastics
  • Print
  • Packaging
  • Motor
  • Van
  • Metal
  • Electronics
  • Medical

Specification:

Model JY-ETC-A-B
Control system The man-machine interface, color LCD touch screen
Temperature range/Temperature fluctuation RT+10 °C~70°C/less then ±3°C
Humidity range ≥95% R·H
Center distance of lamp 70mm
Distance between sample and tube center 50±2 mm
Wave length UV-B Wave (280~315nm) or
UV-A Wave (315~400nm)
Specimen size 50×125 mm
Water and consumption Distilled water, 8 liters / day
L=1220, 40w, 8 UVB or 8UVA
Studio size W1300xD500xH1460mm
Uniformity of temperature and humidity ±3ºC and  ±2%
Fluctuation of temperature and humidity ±1ºC and ±2%
Irradiance 1000uw/cm2
Power AC 220V 50HZ   5KW
Weight 150KG

Features:

(1)Electronic-eye irradiance control system
(2)Use blackboard temperature sensor providing precise temperature and recurring test result.
(3)Perform humidifying, condensation and water spraying circulating test.
(4)Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
(5)Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 48pcs
