Product overview:
This testing machine is also called the test apparatus for checking damage degree of wire which confirms to many standards such as IEC884、IEC60947 and so on. This compliance is used for judging whether the design and the structure of the clamping screw terminal is correspondent with the requirement of non over-damage to the wire. Besides, it is also used to check whether the clamping screw terminal can bear the stress during the process of normal usage.
The testing times can be preset before the test, and the compliance stops automatically with the alarm when the testing times are reached.
The major difference between SC-XL01 and SC-XL02 is that the bigger wire damage test can be achieved through the SC-XL02. The height of the equipment can be adjusted to 464mm. Accordingly, the rotating weight can be reached to the maximum of 22.7kg and the maximum tension weight of 578N. It depends on the actual situation to choose them.
Technical parameters:
Power Supply: AC220V 50Hz or 115V 60Hz
The range of counting number: 1~9999(150 times(15 min) is by default.
Rate of Testing: (10±2)r/min
Rotating weight: 34 pcs.
Pulling weight: 13 pcs
The rotating diameter: 75mm
The diameter of the Ferrule Hole: 6.4、6.5、9.5、12.7、13、14.3、14.5、15.9、19.1、22.2、25.4、28.6mm
Diameter of bushing hole (mm): 6.5,9.5,13,14.5(it can be customized)
Height(H)(mm): 260-480mm
Size: 790mmX400mmX1100mm
| Wire cross-section(mm²) | The diameter of Ferrule Hole( mm) | The height (mm) | The weight of the object (kg) | Tensile force
(N) |
| 0.2 | 6.4 | 260 | 0.3 | 10 |
| – | 6.4 | 260 | 0.3 | 20 |
| 0.5 | (6.4)6.5 | 260 | 0.3 | 30 |
| 0.75 | (6.4)6.5 | 260 | 0.4 | 30 |
| 1.0 | (6.4)6.5 | 260 | 0.4 | 35 |
| 1.5 | (6.4)6.5 | 260 | 0.4 | 40 |
| 2.5 | 9.5 | (279)280 | 0.7 | 50 |
| 4.0 | 9.5 | (279)280 | 0.9 | 60 |
| 6.0 | 9.5 | (279)280 | 1.4 | 80 |
| 10.0 | 9.5 | (279)280 | 2.0 | 90 |
| 16.0 | （12.7）13.0 | （298）300 | 2.9 | 100 |
| 25.0 | （12.7）13.0 | （298）300 | 4.5 | 135 |
| – | （14.3）14.5 | （318）320 | 5.9 | 156 |
| 35 | （14.3）14.5 | （318）320 | 6.8 | 190 |
| – | 15.9 | 343 | 8.6 | 236 |
| 50 | 15.9 | 343 | 9.5 | 236 |
| 70 | 19.1 | 368 | 10.4 | 285 |
| 95 | 19.1 | 368 | 14 | 351 |
| – | 19.1 | 368 | 14 | 427 |
| 120 | 22.2 | 406 | 14 | 427 |
| 150 | 22.2 | 406 | 15 | 427 |
| 185 | 25.4 | 432 | 16.8 | 503 |
| – | 25.4 | 432 | 16.8 | 503 |
| 240 | 28.6 | 464 | 20 | 578 |
| 300 | 28.6 | 464 | 22.7 | 578 |
| 1、 The height：±15mm。
2、 If the diameter of the Ferrule Hole is not big enough, you can choose the larger one. 3、 The numeral in () is the numeral in the standard of IEC60947. |
||||

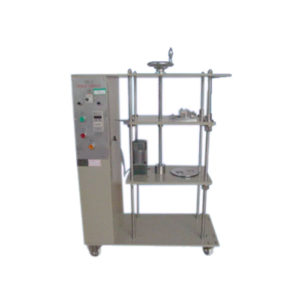

Picture view:
