EN 60320 Figure 12 Apparatus for checking the withdrawal force

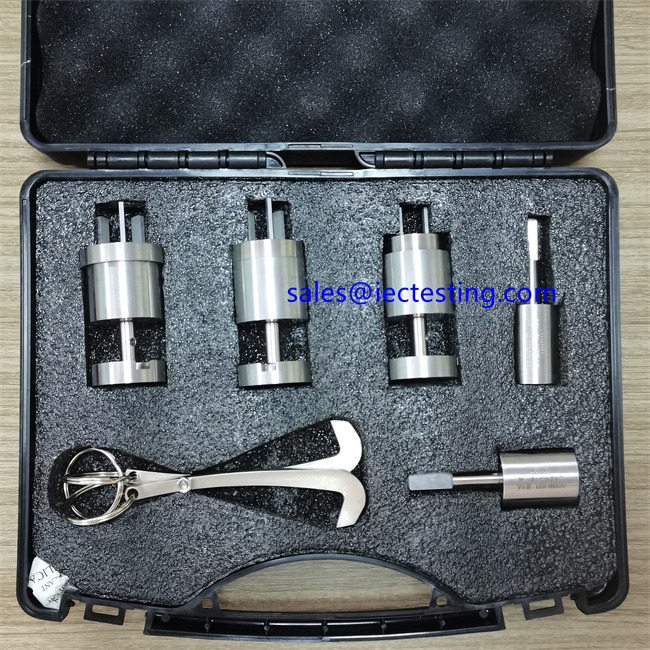

  EN 60320 Figure 12 Apparatus for checking the withdrawal force (SC-BC01)

EN 60320 Figure 12 Apparatus for checking the withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force

Application:

This device complies with the requirements of

EN 60320 Figure 12,

IEC60884 Figure 18/19,

VDE0620, etc.



It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly.

Whether the minimum force required is within the range specified by the standard.

EN 60320 Figure 12 Apparatus for checking the withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force

Parameter:

  1. Standard one-pole 10A, three-pole 10A and 16A test standard plugs each, 10A 16A test standard plugs each, adjustable:
  • 1) Round plug with 2-pole dual socket, the bolt diameter is 4.8
  • 2) The round plug of the 2-pole dual-purpose socket, the bolt diameter is 4.0
  • 3) Round plug (unipolar), the bolt diameter is 4.8
  • 4) Round plug (unipolar), the bolt diameter is 4.0
  1. Weights: 36N*1, 5.4N*1, 5N*2, 4N*1, 2.6N*1;
  • 1) Standard test bolt: Each one for 1.5N and 2N
  • 2)1 set of clamping device
  • 3) 1 set of Weights tray
  • 4) Lateral stress weights 5N*1
  • 5) 1 set of lateral stress bar
Rated value Number of poles Pulling force(N)
The maximum measure gauge of multipole plug pin The minimum measure gauge of Single plug pin The maximum measure gauge of single plug pin
≤10A 2 40 1.5 17
3 50
>10A~16A 2 50 2 18
3 54
More than 3 70
>16A~32A 2 80 3 27
3 80
More than 3 100
EN 60320 Figure 12 Apparatus for checking the withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force

IEC60884-1 Figure18–Apparatus for verification of maximum withdrawal force
EN 60320 Figure 12 Apparatus for checking the withdrawal force
