Apparatus for flexing test-Flexing Test Swivel Machine

Product details:   The FL-1 Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21 which calls for 10,000 flexing at a rate of 60 flexing per minute. Six cables or cords fitted with plugs can be tested simultaneously. The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product details:



The FL-1 Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21 which calls for 10,000 flexing at a rate of 60 flexing per minute. Six cables or cords fitted with plugs can be tested simultaneously. The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection. The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.

 Power Supply 220V 50Hz or 115V 60Hz
Number of Flex Per Test 1-999999 (selectable)
Number of Test Station 6, with 6 sets of clamp device
Rate of Flexing 10~60 times/min(selectable) individual counts for each station
Flexing Angle Swivel angle on either side for 45° , 60°, or 90°(or 180°)(selectable)
Weight 10N/20N*6(the weight of UL113g and 284g can be customized)
Dimensions W*L*H=500mm *1000mm* 1100mm
Conforms to standard IEC884-1 Figure 21 and clause 23.4,IEC320-1,VDE0620


Mechanical theory

The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.



Using method:



Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.

This testing machine can be connected with Load of power line tester for the load test.



Picture view:

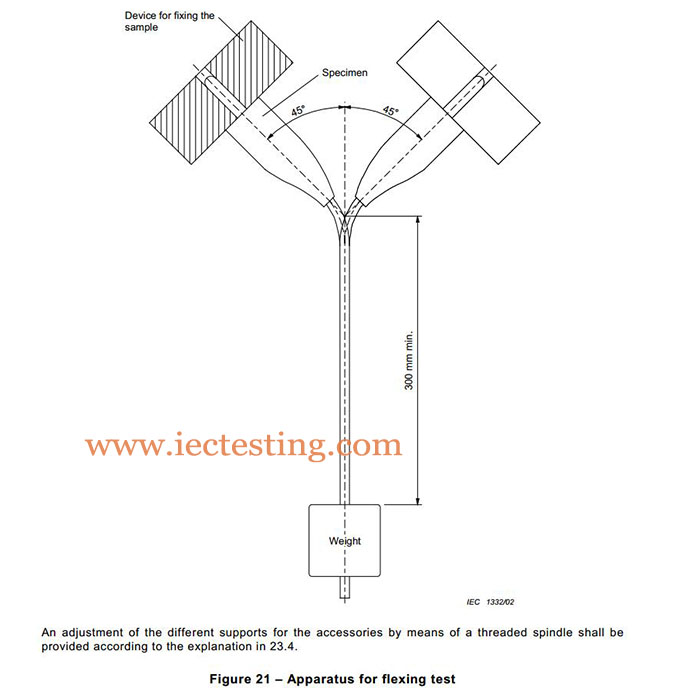

Apparatus for flexing test

Apparatus for flexing test
