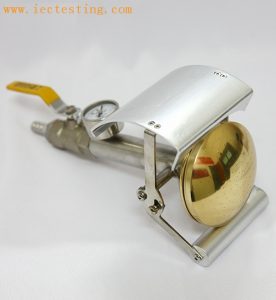

IEC60529 IPX3 IPX4 Spray Nozzle Tester SC-IPX34-SNM

Description:

This is to testing of IPX3 and IPX4 protection aginst water of electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products.

Confirm to standards:

IEC 60529 IPX3, IPX4;

EN 60529 IPX3, IPX4;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Test sample:  The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).



Feature:

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test. To make the shell in every possible direction is splashing, this device can be used with a rotating table of the sample.



Technical parameters:

Model SC-IPX34-SNM
Water supply Water flow rate>10L/min±5% clean water without inclusion.
Control and operation valve, hand held
Nozzle external diameter Ф102mm
Nozzle spherical diameter SФ75.5mm
Nozzle holes 121 holes of Ф0.5mm



1 hole at the centre

1 inner circles of 12 holes at 30° pitch

4 outer circles of 24 holes at 15° pitch

Nozzle material Brass
Moving shield material Aluminum
Water flow 10L/min±5%, Flow meter is adjustable
Pressure gauge 50~150Kpa, Range of pressure gauge 0~0.25Mpa
Baffle Removable
Site requirements Dedicated IP waterproof test room,



The ground should be flat with illumination

With good function of inflow and drainage.

Testing time Manual control, at least 5min
