IEC 60884-1 Safety Test Equipment Plug Socket Switch Breaking Capacity Normal Operation

This series covers all of complete test equipment and system for dimensions, anti electric shocking, temperature rising, structure, normal operating, mechanical strength, cable connection, heat resistance and etc. as per IEC 60884-1. Including plug and socket-outlet gauges, socket-outlet protective probes, wire damage degree test machines, switch and plug-socket endurance testers, load banks, socket-outlet insertion and withdraw testing machines, impact testing apparatus, tumbling barrel test machines, ball pressure devices and etc.

Test Equipment List As Per IEC 60884-1:2006 ED. 3.1

No. IEC 60884-1 Test Equipment/ Hongce Item Name &Model No. Clause of IEC 60884-1
1 Socket and plug gauges (need to customized according to specific country’s standard) Clause 9
2 Test Probe B Clause 10.1
3 Anti Shock Probe Experiment Device Clause 10.1
4 Rigid Test Probe Clause 10.1&13.22
5 Force Gauge Clause 10.1&13.22&14.2 and etc.
6 Compression Testing Machine Clause 10.1 figure 8, Clause 24.5
7 20N Test Probe Clause 10.5 figure 9
8 1N Test Probe Clause 10.5 figure 10
9 Conductor Damage degree test device Clause 12.3.10 figure 11
10 Screwless terminals bending and voltage drop measurement device Clause 12.3.12 figure 12a & figure 12b
11 Test Apparatus For Lateral Stress Clause 14 figure 13
12 Programmable Temperature Humidity Chamber Clause 13.22&13.23&16.1&16.3 and etc.
13 Device for testing Non – solid Pins Clause 14.2 figure 14
14 Diameter 4.8 steel probe Clause 14.2
15 Temperature Rising Tester Clause 14.23.1, clause 19
16 Plug socket torque tester Clause 14.23.2
17 Circulating Air Oven Clause 16.1
18 Test Probes for Protection against access to hazardous parts Clause 16.2.1.1
19 Test Probes for Protection against harmful effects due to ingress of solid foreign objects Clause 16.2.1.2
20 Sand and dust test chamber
21 IPX1~IPX8 Water proof degree test system Clause 16.2.2
22 Concealed Mounting Box Clause 19

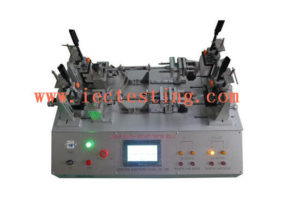

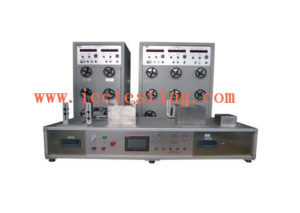

23 Switch And Plug-Socket Endurance Tester Clause 20 &21 figure 16
24 Resistance Inductance Capacitive Load Box Clause 20 &21
25 Apparatus For Verification of Maximum And Minimum Force Clause 22.1 &22.2
figure 18&figure 19
26 Apparatus For Testing Cord Retention Clause 23.2 figure 20
27 Flexible Cable Torque Tester Clause 23.2
28 Power cord felexibility tester Clause 23.4 figure 21
29 Vertical Pendulum Impact Test Apparatus Clause 24.1
figure 22&23&24&25&26
30 Test Cylinder Clause 24.3
31 Low-Temperature Impact Test Device Clause 24.4 figure 27, clause 30.4 figure 42
32 Insulation Sleeves of Plug Pins Abrasion Test Apparatus Clause 24.7 figure 28
33 Mobile Outlets Mechanical Strength Tester Clause 24.9 figure 29
34 Apparatus To Verify The Fixation Of Pins In The Body Of The Plug Clause 24.10 figure 30
35 A cylindrical steel rod, having a diameter of 3 mm and a hemispherical end with a radius of 1,5 mm Clause 24.11
36 Measure Gauge For Cover Plate Clause 24.17 figure 32
37 Taper Gauge Clause 24.18 figure 35
38 Heat Resistance Compression Test Device Clause 24.19 figure 38, clause 25.4
39 Ball pressure tester Clause 25.2 figure 37
40 Creepage distance guages Clause 27.1
41 Glow wire tester Clause 28.1.1
42 Plug Set Heat Insulation Tester Clause 28.1.2 figure 40
43 Tracking leakage tester Clause 28.2
44 High Temperature Indentation Device Clause 30.1 figure 41
45 Reference plug (need to customized according to specific country’s standard) Annex C figure C.1
46 A typical apparatus Annex C figure C.2
