Product information:

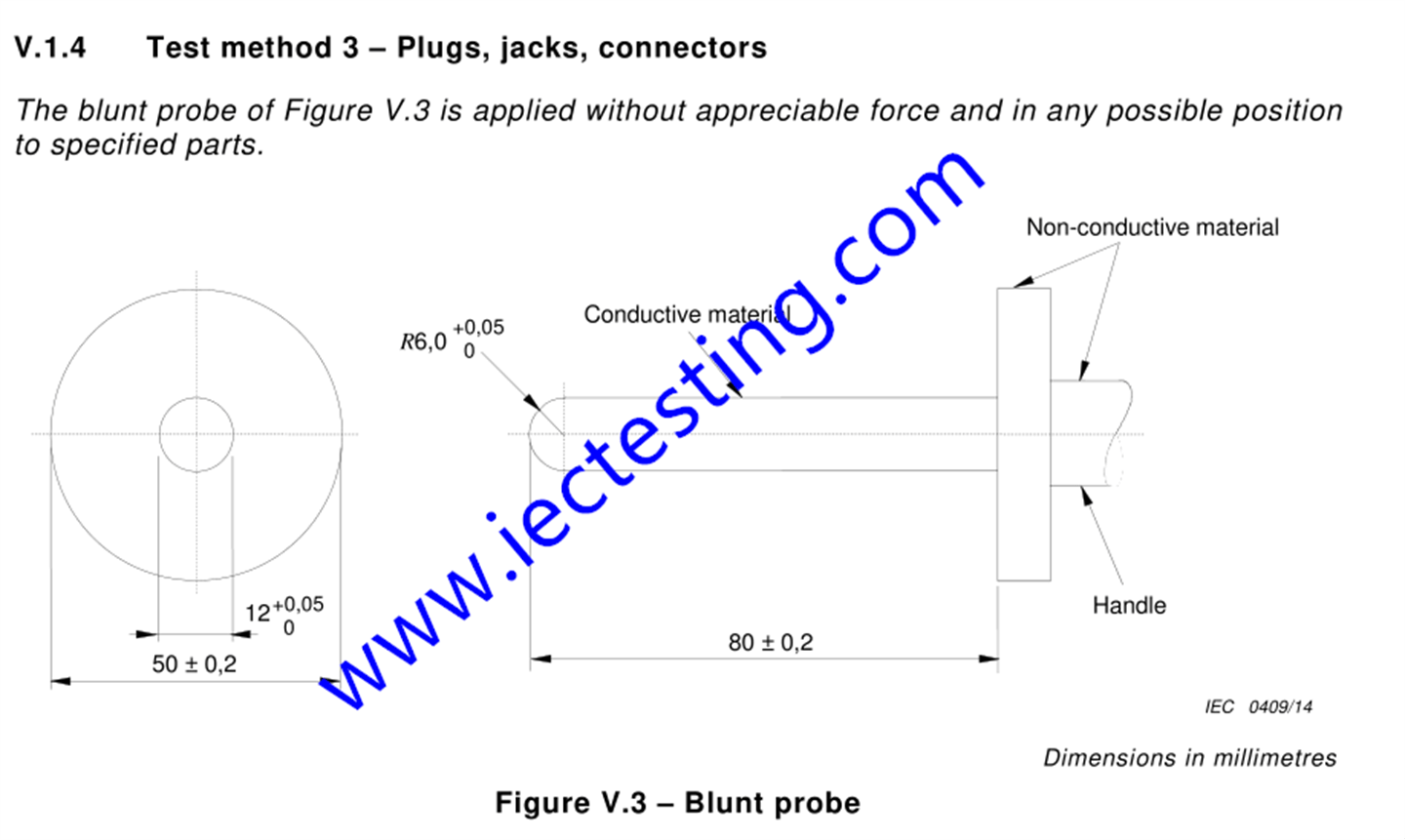

The blunt probe of figure V.3 conforms to IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3 and UL6500 figure B.1.

It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.

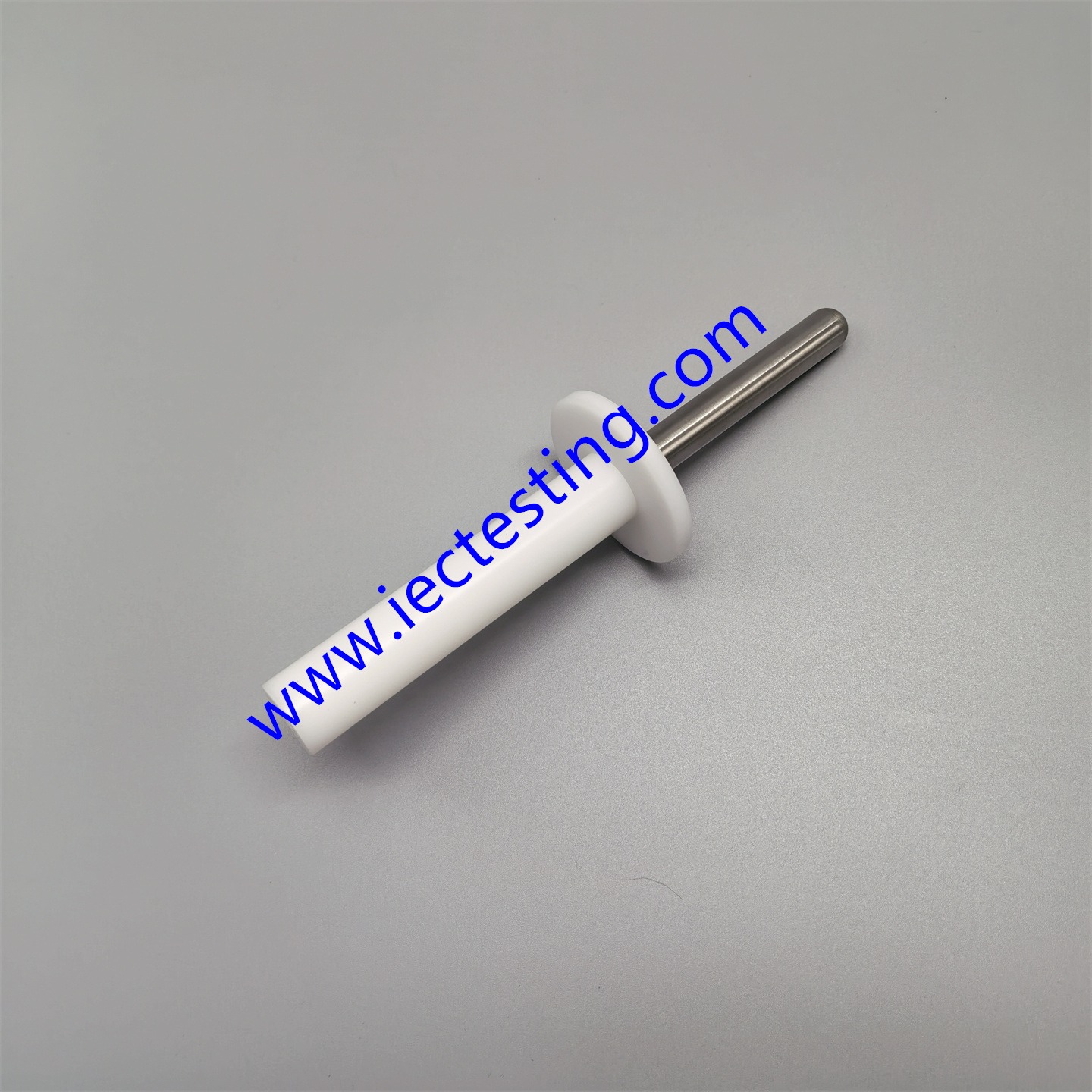

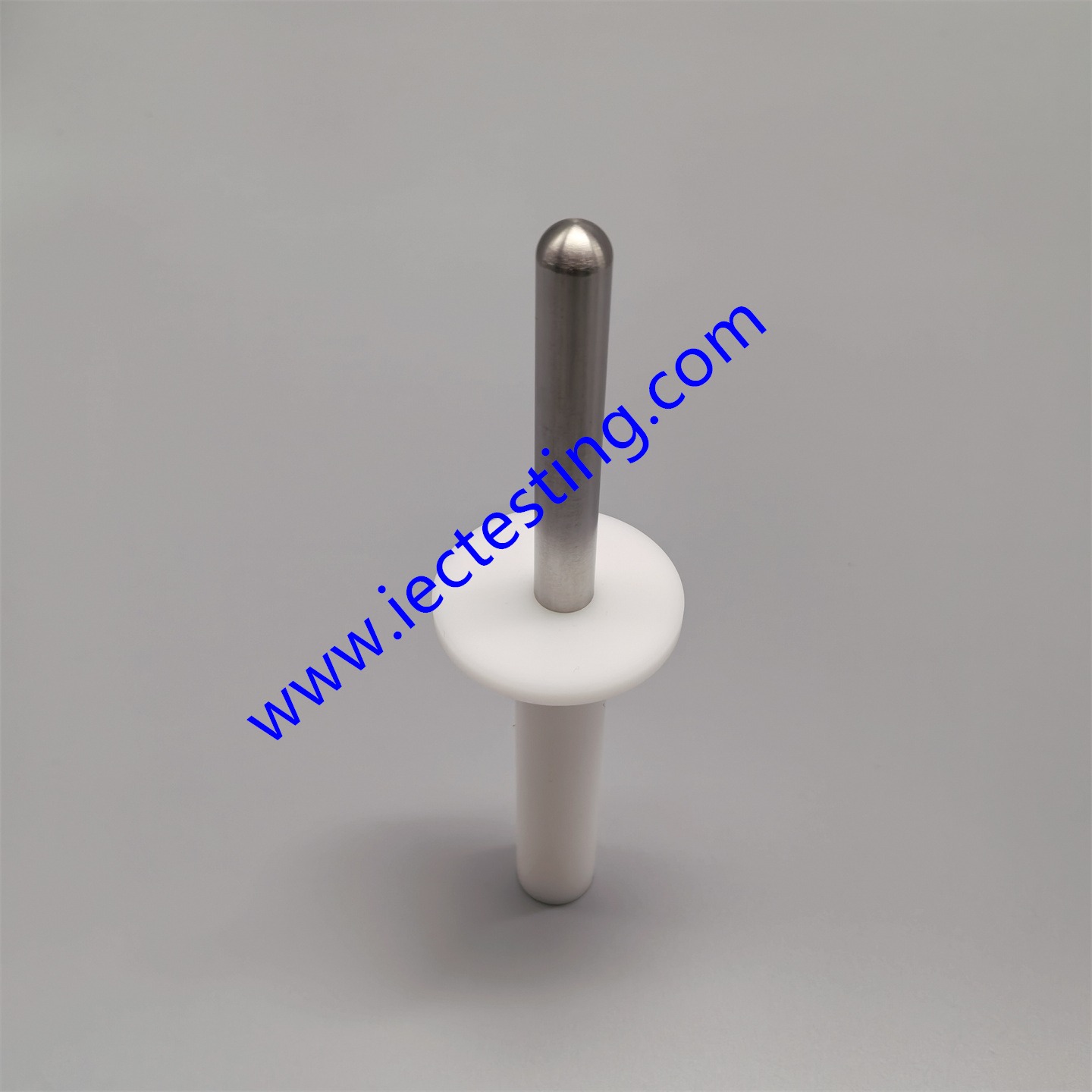

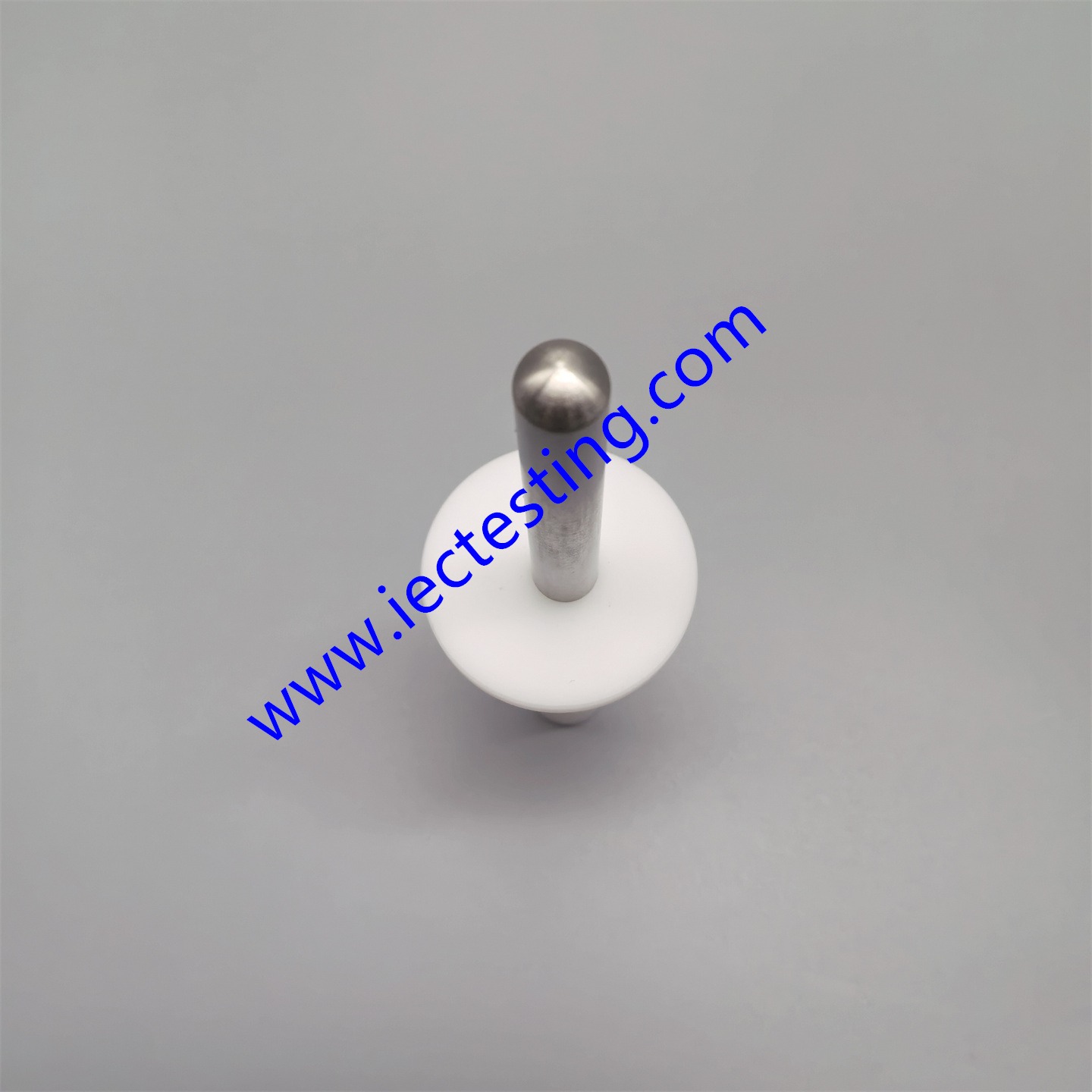

Technical Parameters:

Probe Length 80 mm
Probe End Radius R6 mm
Probe Diameter Φ12 mm
Baffle Diameter of Handle Φ 50 mm
Probe material Stainless steel
Handle material Nylon
