Technical Parameters:
| Probe diameter | Φ40mm |
| Probe end shape | Hemispherical |
| Probe material | Stainless steel |
| Handle | Nylon |
Standard and Application:
The φ40mm cylinder rod meets the standard requirements of IEC 60335-2-14 Clause 20.103.
It is used to verify the hand-held blenders other than hand-held food mixers provided with a blender attachment shall incorporate a biased-off switch, its actuating member being positioned in a recess or otherwise guarded to prevent accidental operation.
Test Procedures and Operation:
Please refer to the relevant standards.
Take IEC 60335-2-14 Clause 20.103 as an example:
Compliance is checked by applying a cylindrical rod, having a diameter of 40 mm and a hemispherical end, to the actuating member of the switch. The test rod is applied with a foce not exceeding 5 N. The appliance shall not operate.
The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge.

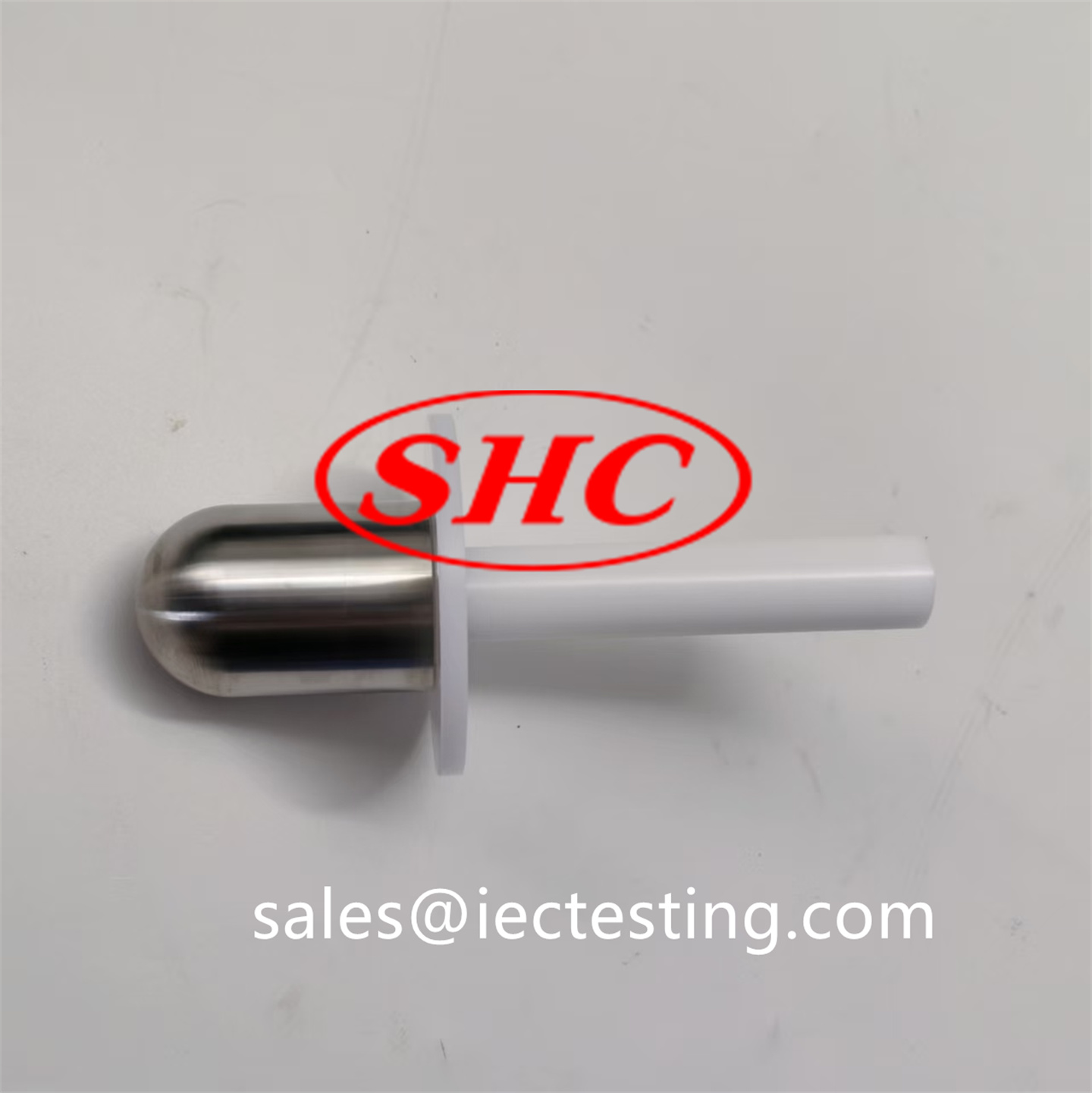

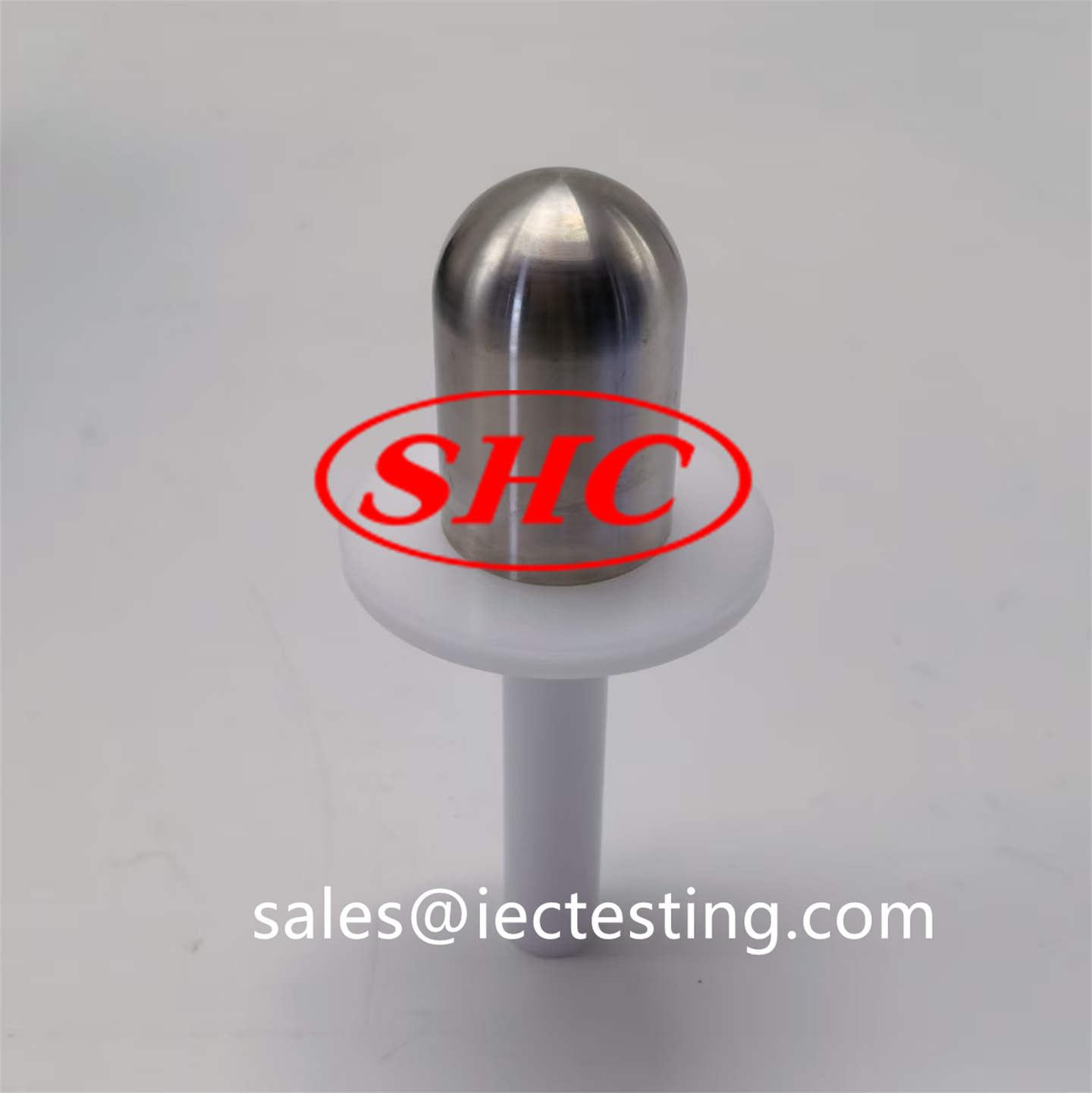

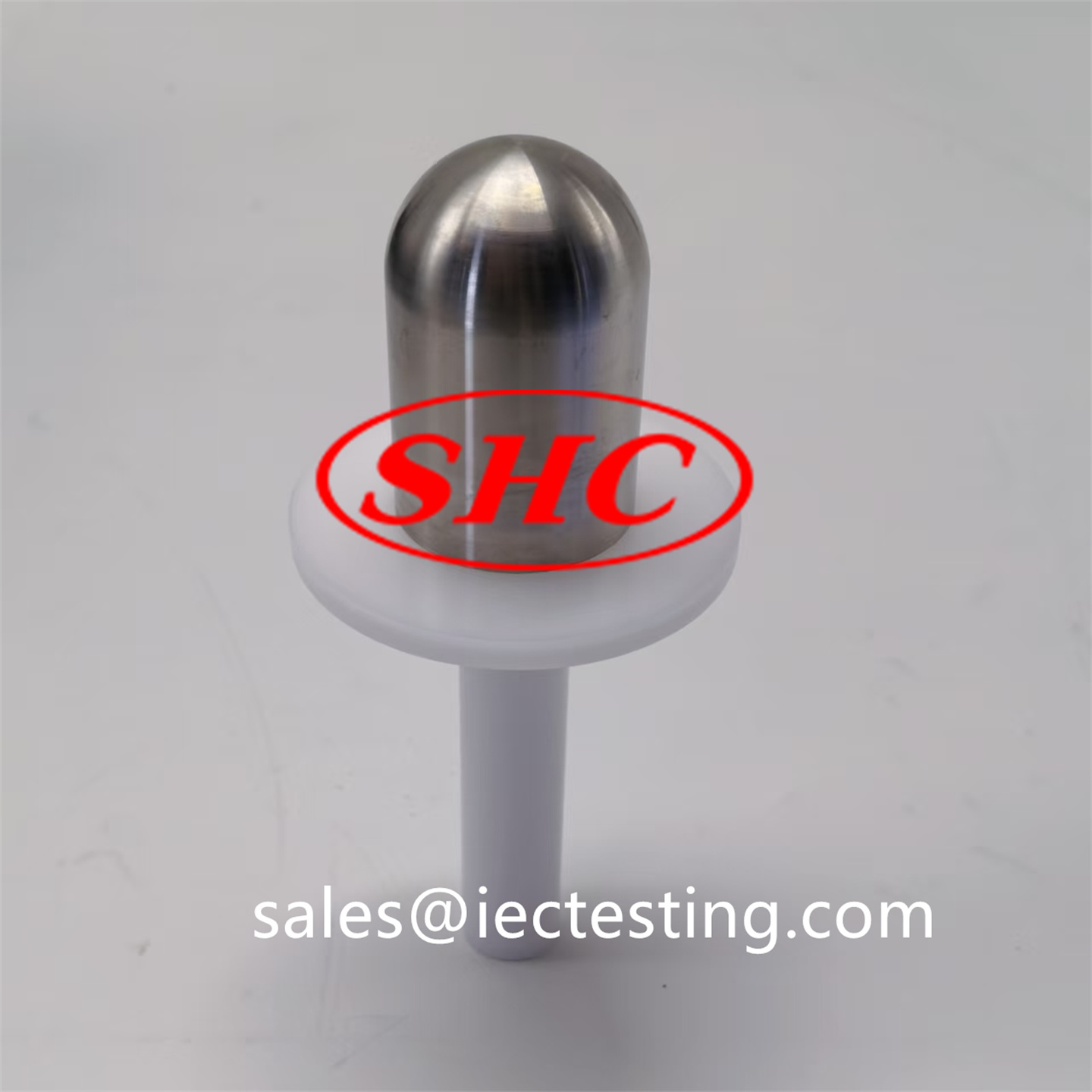

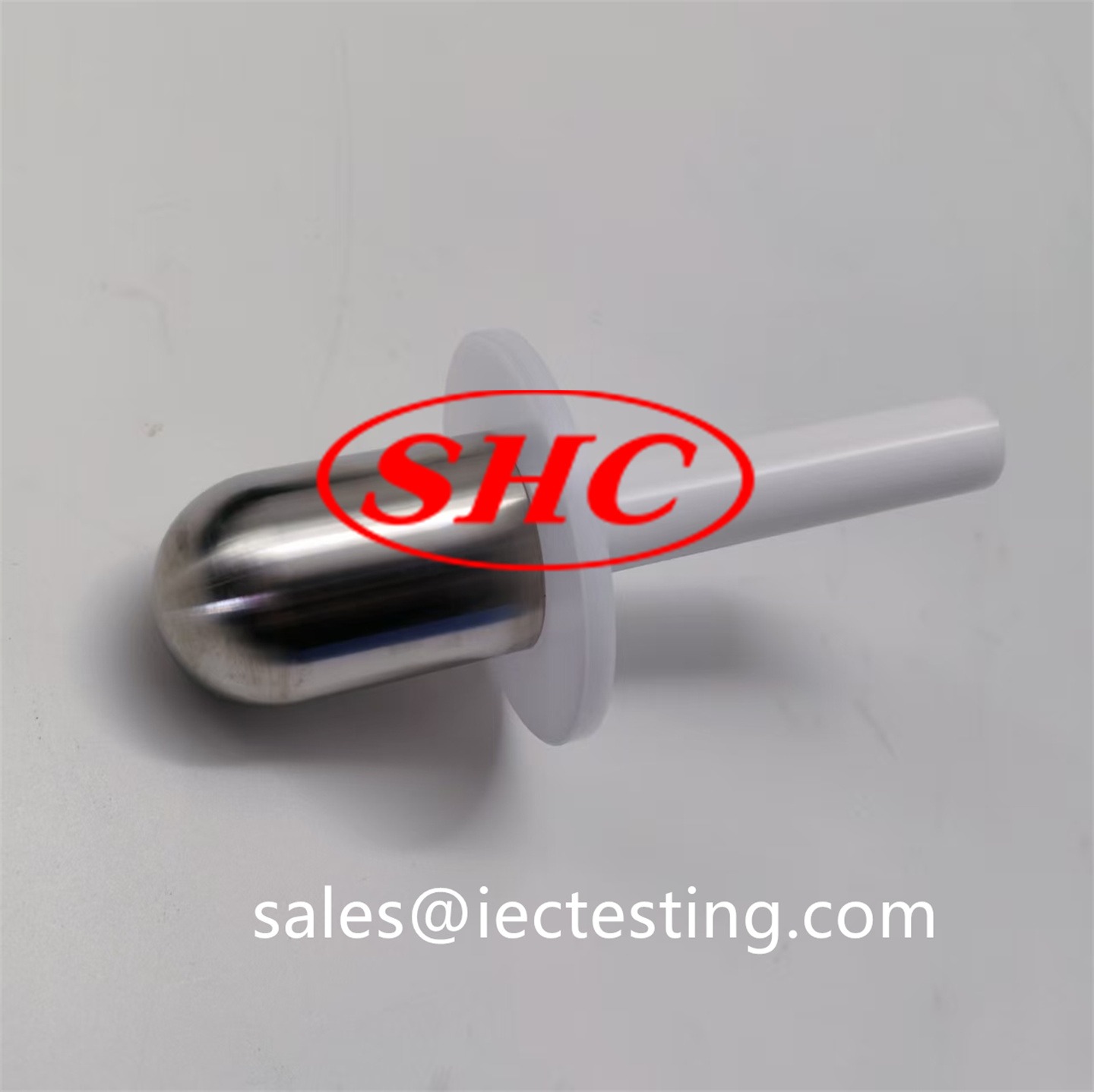

Picture view:
SC-T43
