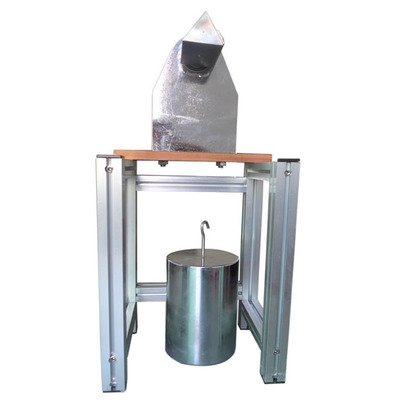

Mandrel Test Device DETAIL:
Mandrel Test Device confirms to IEC60950、IEC60065-1.
Insulation anti damage strength verification for non separable thin layer materials.
Non separable thin layer material.
The position of 10°and 230°are set with mechanical limit,not only to ensure the accuracy of the test angle, but also to achieve a simple operation method; weight with a hanging ring, in case of a point is damaged because of too large pull force.
1、Weight of 50N*3pcs，can be combined to achieve 100N and 150N testing.
2、Number of test times：3 times.
3、Withstanding voltage tester(Optional).
