IEC61032 Figure 10 Test probe 14

This bar is intended to verify the protection against access to hazardous live parts of socket-outlets through shutters.

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product information:

 The test bar conforms to the IEC61032 figure 10 Test probe 14 standard requirement. It is used to verify the protection against access to hazardous live parts of socket-outlets through shutters. It is equipped with the handle which is made of nylon.

Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Main specification and corresponding technical parameters:

Parameters /Model Test bar JY-F1014
1 3+0.03  0
2 1+0.015  0
3 80±0.5
4 R0.2±0.05

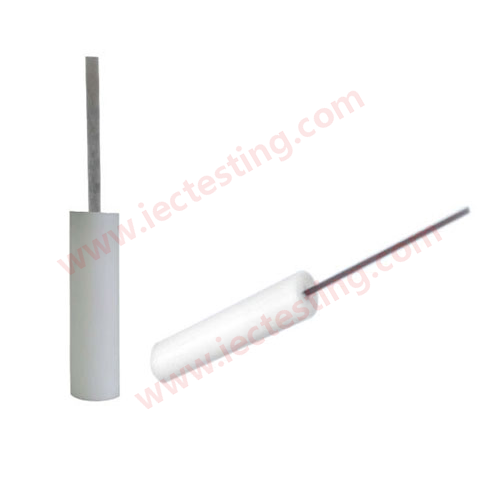

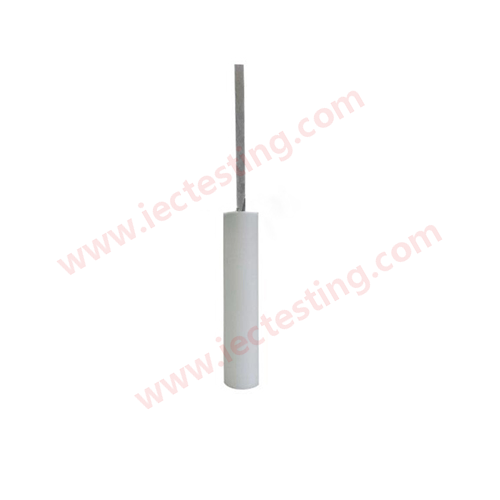

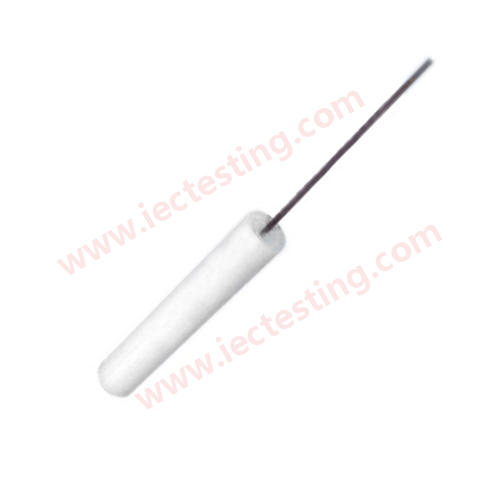

Pictures view:

IEC61032 Figure 10 Test probe 14

IEC61032 Figure 10 Test probe 14

This bar is intended to verify the protection against access to hazardous live parts of socket-outlets through shutters.
