IPX1 And IPX2 Drop Box device Model: JY-IPX12A

The drip box test is one of several methods used to test the water protection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.
This test is used to meet the requirements of IPX1 and IPX2 in IEC60529. The drip box test subjects an enclosure to vertically falling drop lets much as a product might see during rain. The test has two parts. The first has the specimen sit in the orientation of its intended use.
The second has the specimen tilted 15° from vertical in four directions to simulate a blowing rain. This second test is also done with a higher flow rate of drips.

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL



1.The drip box sizes can make different size according to request.
2.The size of the drip box is different depending on the size of the test product.
3.the size can be customized by the customers’ need.
No. Item Parameter
1 Model JY-IPX12A-800 JY-IPX12A-1000
2 Drip Box Size 800mm x 800mm(or other size) 1000 x 1000mm(or other size)
3 Dimensions L1050×D1150×H2600 mm L1250 x D1350 x H2600mm
4 Turntable Diameter ¢500 mm ¢600 mm
5 Nozzle ¢0.4mm ¢0.4mm
6 Nozzle hole distance 20 x 20 mm 20 x 20 mm
7 Drip Capacity 1-5mm/Min(±0.5mm/min) 1-5mm/Min(±0.5mm/min)
8 Adjustment method Automatic or Manual Automatic or Manual
9 Drip Box Travel 1000mm-1800mm can be adjustable 1000mm-1800mm can be adjustable
10 Turntable Max Loading Weight 50 kg 65 kg
11 Rotation Speed 1 r/min 1 r/min
12 Angle   0° or 15°   0° or 15°
13 Turntable Height 300mm 300mm
14 Test time 0-999 min 0-999 min
15 Protection Leakage, water shortage, short circuit Leakage, water shortage, short circuit
17 Power 250V or 110V,1KW 250V or 110V,1KW



IPX1-2 Drop Box tester

The drip box test is one of several methods used to test the water protection capabilities of enclosures for electronic items that are expected to be exposed to rain or water spray.
This test is used to meet the requirements of IPX1 and IPX2 in IEC60529. The drip box test subjects an enclosure to vertically falling drop lets much as a product might see during rain. The test has two parts. The first has the specimen sit in the orientation of its intended use.
The second has the specimen tilted 15° from vertical in four directions to simulate a blowing rain. This second test is also done with a higher flow rate of drips.
This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2

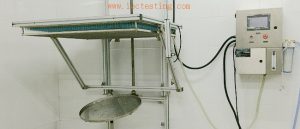

The JY-IPX12A Drip Box Tester is designed to meet the requirements of IEC 60529. The tester can accommodate one of three different size drip boxes – 500* 500 mm,800* 800 mm, or 1000* 1000 mm.The flow rate of drips is set and monitored by a user friendly touch screen controller that sets the water pressure to the drip box. The drip box and the water system is fully enclosed and filtered to minimize clogging of any nozzles.
The instrument is supplied with a specimen turntable that rotates at 1 rpm. The base of the turntable is 500 mm high. The turntable can be wheeled in and out from under the drip box for specimen loading and unloading. The height of the box is electronically adjustable up to a height of 2500 mm or 2000 mm above the base of the turntable. Test duration is 10 minutes for IPX1 and 2.5 minutes for each angle adjustment of IPX2. The time of test can be set on the controller so the test stops automatically.





The JY-IPX12A Drip Box Tester Features

—Choice of three drip box sizes (can make different size according to request)

—Stainless steel nozzles and brass base removable for cleaning or replacing

—Under nozzle equipped with stainless steel mesh, safety prevents operator head accidentally touch needle injury

—Automatic air pressure cleaning nozzle and dry function, to avoid blocking nozzle.

—Drip flow rate precisely controlled by flow meter with the regulator periodically

—Drip box height electronically adjustable and fall safety device

—Filter can remove impurities from the water, filter cartridge can be replaced

—Motorized turntable connected to instrument controller

—Turntable tiltsto 15°

—Turntable electrical part of the whole seal to prevent leakage of water

—Stainless steel turntable with easy height adjustment

—Turntableis equipped with waterproof; the universal adaptor can be used in the sample charged test;

—Turntable has four wheels with brake activity, convenient mobile and fixed.

—Machine shelf material is aluminum and stainless steel.
