IPX5 & IPX6 Jet Test Chamber (Model:JY-IPX56C)
- PRODUCT DETAIL
IPX56 powerful water jets
IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3 mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100 l/min.
IPX5 & IPX6 Jet Test Device Features:

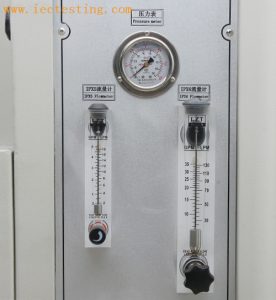

The JY-IPX56B IPX5-6 Jet Test Chamber with Supply System consists of a jet handle that is equipped with a pressure gauge and IPX5 & IPX6 nozzle; a supplys ystem that is equipped water tank, water pump and control l system.
—Stainless steel nozzles
—Water tank stainless steel
—Touch screen operation
—Leakage safety protection devices, short circuit safety protection device
—Waterpump overload warning to ensure safety
—Valve for waterflow regulation and shut off
—Turntable electrical part of the whole seal to prevent leakage of water
—Turntableis equipped with waterproof; the universal adaptor can be used in the sample charged test;
—Four wheels with brake activity, convenient mobile and fixed.
IPX5 & IPX6 Jet Test Device Specifications
|2||Internal Dimensions (mm)||800×800×800||1000×1000×1000||1180×1180×1300|
|3||External Dimensions (mm)||4000×1050×1600||4000×1250×1800||4000×1450×2000|
|4||Turntable Table Diameter（mm）||¢600||¢800||¢800|
|5||Operating mode||Touch screen||Touch screen||Touch screen|
|6||Nozzle Diameter (IPX5) mm||6.3||6.3||6.3|
|7||Nozzle Diameter (IPX6) mm||12.5||12.5||12.5|
|8||IPX5 Water flow（L/min）||12.5±0.625||12.5±0.625||12.5±0.625|
|9||IPX6 Water flow（L/min）||100±5||100±5||100±5|
|10||Pressure Gauge（Mpa）||0 – 1MPa||0 – 1MPa||0 – 1MPa|
|11||Flow meter||5-20 L/min (IPX5),10-110 L/min (IPX6)|
|12||Nozzle distance to test products||2.5 m||2.5 m||2.5 m|
|13||Test time||1-9999 min can be set||1-9999 min can be set||1-9999 min can be set|
|14||Power supply||380VAC 50 Hz (voltage fluctuation≦+/-10%)||380VAC 50 Hz (voltage fluctuation≦+/-10%)||380VAC 50 Hz (voltage fluctuation≦+/-10%)|
1.The sizes can make different size according to request.
2.The size is different depending on the size of the test product.
3.The size can be customized by the customers’ need.
