“IPX7 Temporary Immersion Tank -Electric hoist
IPX7 IMMERSION TANK is intended for testing protection against ingress of water, IPX7 ingress of water in quantities causing harmful effects shall not be possible when the enclosure is temporarily immersed in water under standardized conditions of pressure and time, and it is constructed in compliance with IEC 60529.
Immersion up to 1 m, 0.15m above top 1m above bottom, Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). Test duration: 30 minutes and Immersion at depth of 1m.
—Level logo : 1000mm, transparent water level can be observed
—After the tank filled with water without leakage at the bottom with a drain valve into the sailor , convenient water discharge
—Four wheels with brake activity, convenient mobile and fixed
—Material: SUS304 stainless steel
—Inner stainless steel thickness: 1.5mm
—Outer stainless steel outer thickness: 1.0 mm
—Inside and outside layer thickness: 40 mm
—Test the highest depth: 1.2-1.5 m
—Water level adjustment method: manual adjustment
—Water level display: stainless steel ruler

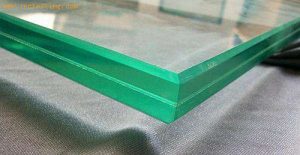

—Other material: SUS304 stainless or tempered glass
| Item | Parameters | ||||
| Model | JY-IPX7B-300 | JY-IPX7B-600 | JY-IPX7B-800 | JY-IPX7B-1000 | JY-IPX7B-1200 |
| Internal Dimensions (mm) | 300*300*1200 | 600*600*1200 | 1000*800*1200 | 1000*1000*1200 | 1200*1200*1200 |
| External Dimensions (mm)） | 360*360*1300 | 660*660*1300 | 1080*880*1300 | 1080*1080*1300 | 1280*1280*1300 |
| Materials | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Thickness（mm） | 1.5 | 1.5 | 1.5 | 2 | 2 |
| Test the highest depth（m） | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Water level adjustment method | Manual adjustment | ||||
| Water level display | Stainless steel ruler | ||||
