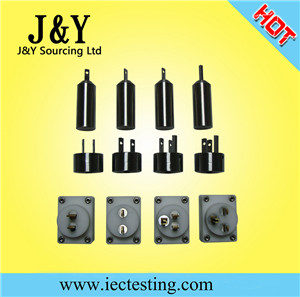

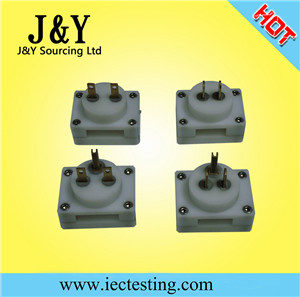

JISc 8303 Gauge for plug and socket

Application:

J&Y offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 53-58 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.



Conforms To:

JISc 8303

Specification:

Product Model Standard           Product Name
SC-JS801 Figure A.1 Maximum retaining force gauge(15A125V)
SC-JS802 Figure A.1 Minimum retaining force gauge(15A125V)
SC-JS803 Figure A.1 Test plug for temperature rise test(15A125V)
SC-JS804 Figure A.2 Maximum retaining force gauge(15A125V)
SC-JS805 Figure A.2 Minimum retaining force gauge(15A125V)
SC-JS806 Figure A.2 Test plug for temperature rise test(15A125V)
SC-JS807 Figure A.3 Maximum retaining force gauge(20A 125V)
SC-JS808 Figure A.3 Minimum retaining force gauge(20A 125V)
SC-JS809 Figure A.3 Test plug for temperature rise test(20A 125V)
SC-JS810 Figure A.4 Maximum retaining force gauge(20A 250V)
SC-JS811 Figure A.4 Minimum retaining force gauge(20A 250V)
SC-JS812 Figure A.4 Test plug for temperature rise test(20A  250V)
SC-JS813 Figure A.5 Maximum retaining force gauge(30A 250V)
SC-JS814 Figure A.5 Minimum retaining force gauge(30A 250V)
SC-JS815 Figure A.5 Test plug for temperature rise test(30A  250V)
SC-JS816 Figure A.9 Maximum retaining force gauge(15A 125V)
SC-JS817 Figure A.9 Minimum retaining force gauge(15A 125V)
SC-JS818 Figure A.9 Test plug for temperature rise test(15A 125V)
SC-JS819 Figure A.10 Maximum retaining force gauge(15A 250V)
SC-JS820 Figure A.10 Minimum retaining force gauge(15A 250V)
SC-JS821 Figure A.10 Test plug for temperature rise test(15A 250V)
SC-JS822 Figure A.11 Maximum retaining force gauge(15A  125V)
SC-JS823 Figure A.11 Minimum retaining force gauge(15A  125V)
SC-JS824 Figure A.11 Test plug for temperature rise test(15A  125V)
