Load of power line tester

Product information:   This device is designed according to the relevant technical requirements of IEC, UL, and related technical requirement of national standards. It is applied to test of current power cords, cables and electrical material whose tested requirements of the current are under 50A/20A. Only in the test of current can it test 2 samples (LP-1) or 6 samples (LP-2). The output voltage o ...
SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL

Product information:



This device is designed according to the relevant technical requirements of IEC, UL, and related technical requirement of national standards. It is applied to test of current power cords, cables and electrical material whose tested requirements of the current are under 50A/20A. Only in the test of current can it test 2 samples (LP-1) or 6 samples (LP-2). The output voltage of the circuit can be adjustable.



Technical parameters:



Input voltage AC220V±5%, 50HZ
Output current 0 ~ 40A is arbitrary adjustable
Output voltage 0 ~ 280V
Test station 2 stations (LP-1)/ six stations (LP-2)
Ammeter Accuracy ±1%
Connecting wire 7PIN Aviation wire
Environment temperature -10℃~50℃

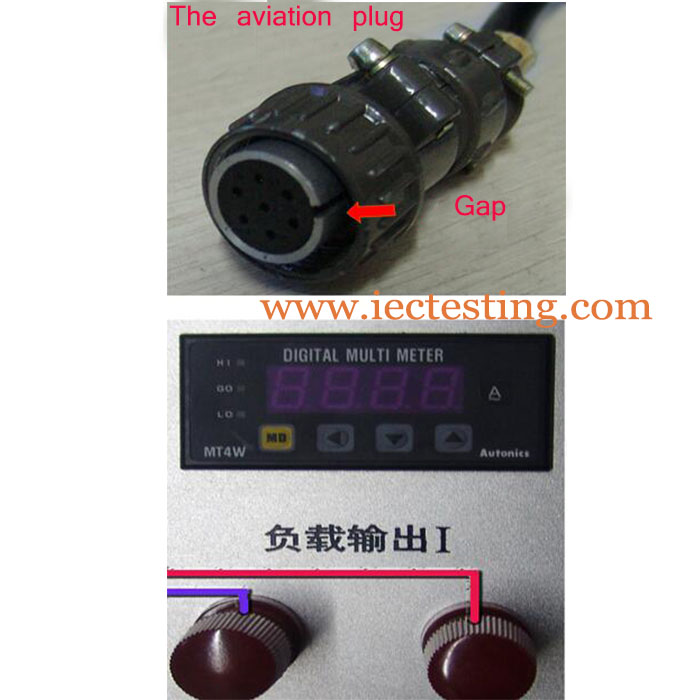

Picture view:

Load of power line tester

Load of power line tester
