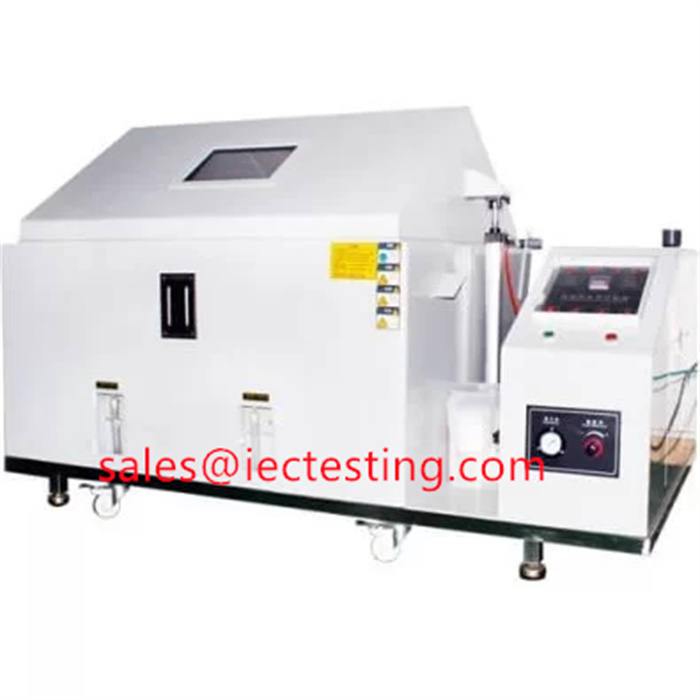

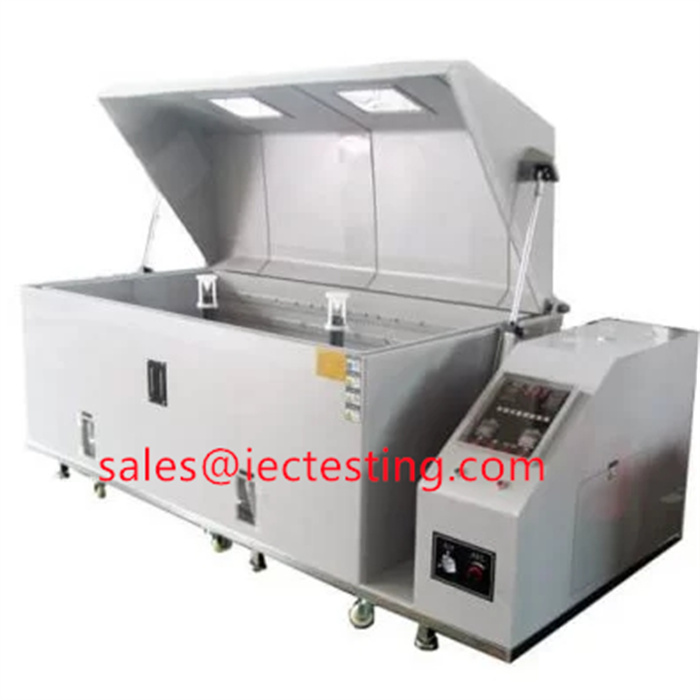

Salt Spray Corrosion Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Applications:
- Aerospace
- Metal Parts
- Electronics
- Car Spare Parts
- Battery
Specification:
| Model | JY-ETC-60 | JY-ETC-90 | JY-ETC-120 | JY-ETC-160 | JY-ETC-200 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x50 | |||||
| External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x120x140 | 270x150x150 | |||||
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method | |||||||||
| (CASS)50°C±1°C | ||||||||||
| Brine temp | 35°C±1°C 50°C±1°C | |||||||||
| Test chamber volume | 108L | 270L | 480L | 800L | 1440L | |||||
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L | |||||
| Compressed air pressure | 1.00±0.01kgf/cm2 | |||||||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | |||||||||
| Test room relative humidity | 85%RH or more | |||||||||
| PH | 6.5~7.2 or 3.0~3.2 | |||||||||
| Spray method | Programmable spray (including the continuous spray interrupted spray) | |||||||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A | |||||
Features:

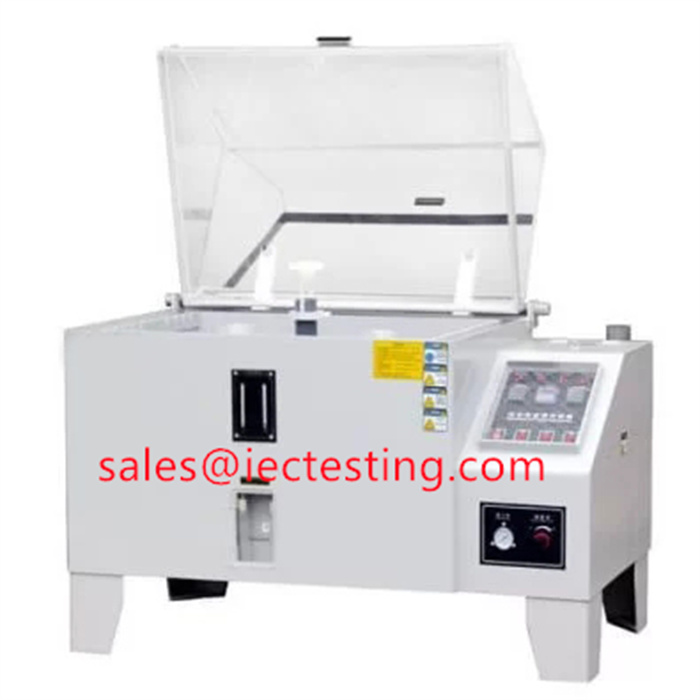

1.The Laboratory Nozzle Salt Spray Corrosion Test Chamber is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2.A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
