Standard:
IEC 60884-1 2013 clause 23.2, VDE0620 clause 23.2
Application:
This probe also has provision to apply the force 0~ 75N with minimum resolution of 5N provided with banana pin at back side to check the continuity during the test.

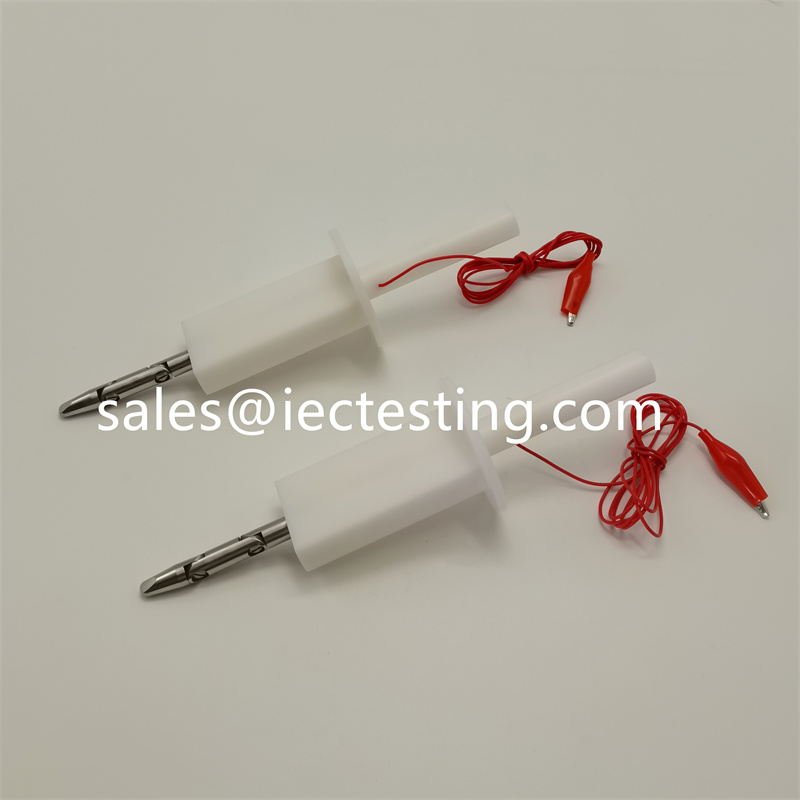

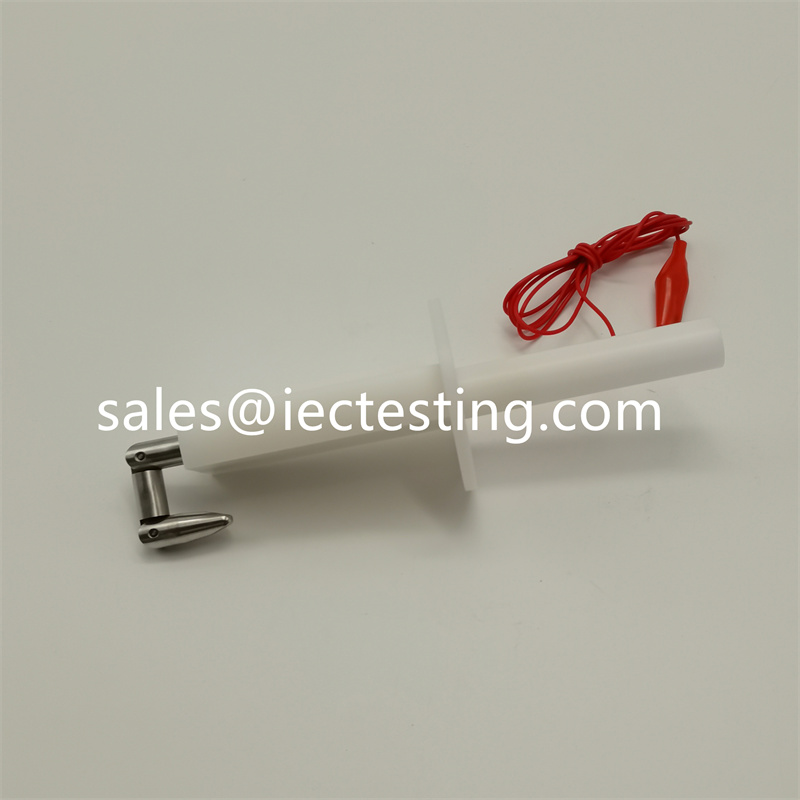

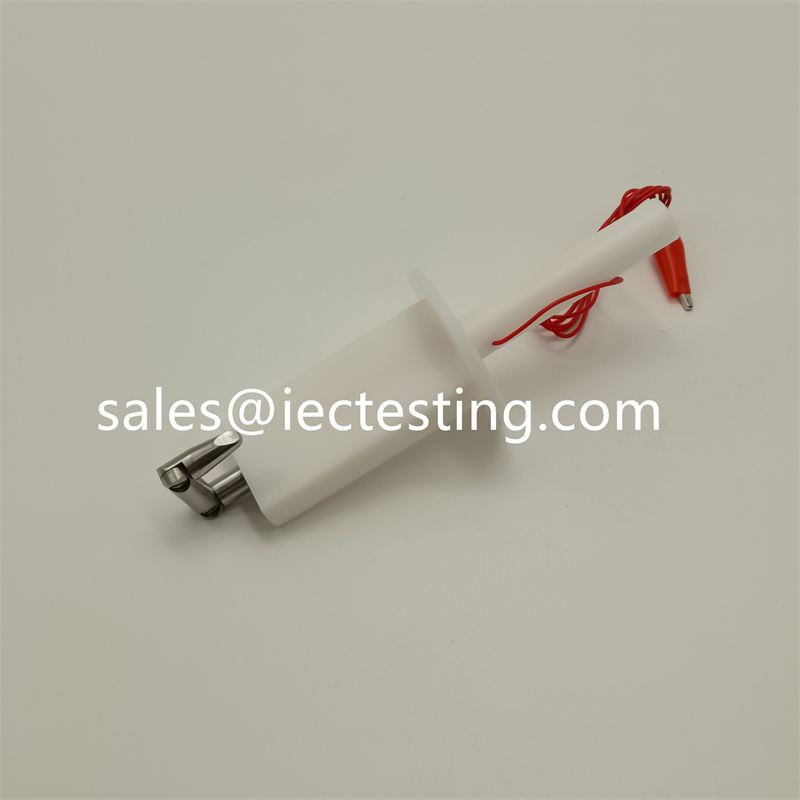

The standard test finger is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. It is a special instrument for household and similar electrical appliances shell against electric shock test, an essential lab ware for the quality inspection departments and research units to detect relevant household appliances product safety performance.
Parameters:
|
Parameters /Model |
JY-F2B |
|
Name |
Standard test finger with force |
|
1 |
30±0.2 |
|
2 |
60±0.2 |
|
3 |
80±0.2 |
|
4 |
180±0.2 |
|
5 |
R2±0.05 |
|
6 |
S4±0.05 |
|
7 |
37o 0 -10’ |
|
8 |
14 o 0 -10’ |
|
9 |
Ф12 0 -0.05 |
|
10 |
Ф50 |
|
11 |
20±0.2 |
|
12 |
Ф75±0.2 |
|
13 |
5±0.5 |
|
14 |
10-30N force |
|
15 |
IEC60529 |
