Sockets and outlets lifespan Tester

Product overview:

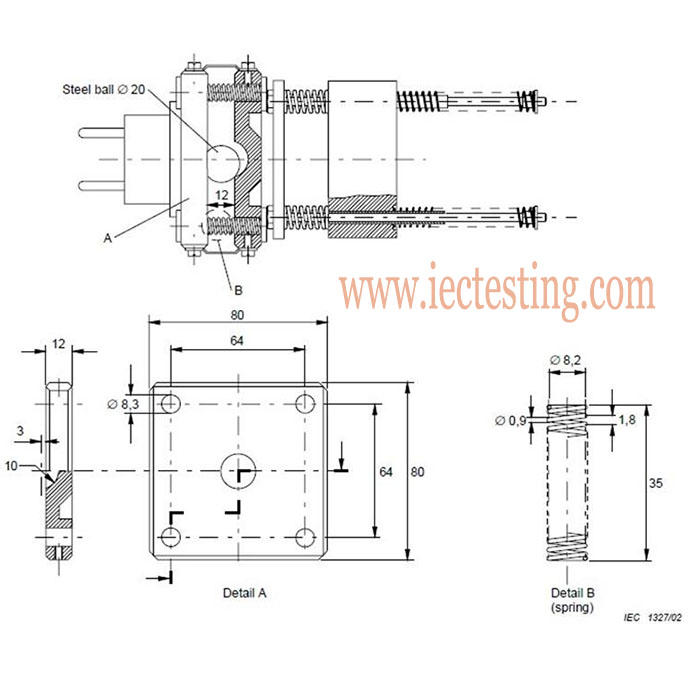

This device complies with standard terms of 20, 21 in GB2099.1-2008 (figure 16) IEC884-1(figure 16). It can be used for the test of breaking volume of socket and outlet, and mechanical action of normal operation lifespan test. It is also used for the lifespan test and the capability of all kinds of linear switches. This equipment uses pneumatic unit as motive power and its power-on time and intermittent time can be adjusted.


Technical parameters:


Air source: 5 ~ 8 kg/cm2

Setting experiment time: 0.1 ~ 999.9 S can be set (four number displayed)

Working station: 2

It is equipped with the plug and socket clamp and switch jig

It is also equipped with wiring terminal through which the tester can be connected with the load box for the load test.

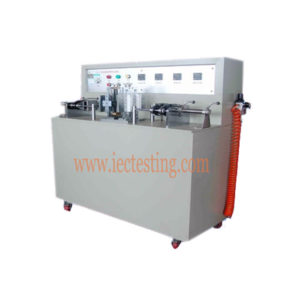

Picture view:
