Test Sphere Probe 2 JY-F62

Test Sphere Probe 2 JY-F62

Test Sphere Probe 2 JY-F62



Product information:



This test sphere probe confirms to IEC61032 figure 6 probe 2、IEC60529 of IP2. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater.

Customizable: used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with “T” is with force.



Technical parameters:



Parameters /Model JY-F62 JY-F62-F
Name Test probe 2 steel ball Test probe 2 steel ball with force
Sizes SФ12.5+0.2  0 SФ12.5+0.2  0
Force —- 30N
Standard IEC61032 IEC60529

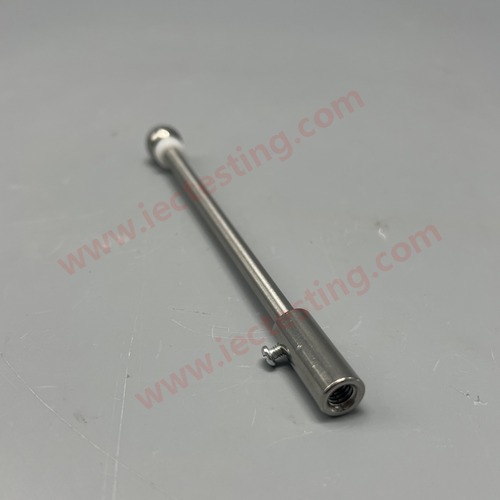

Pictures view:

Test Sphere Probe 2 JY-F62

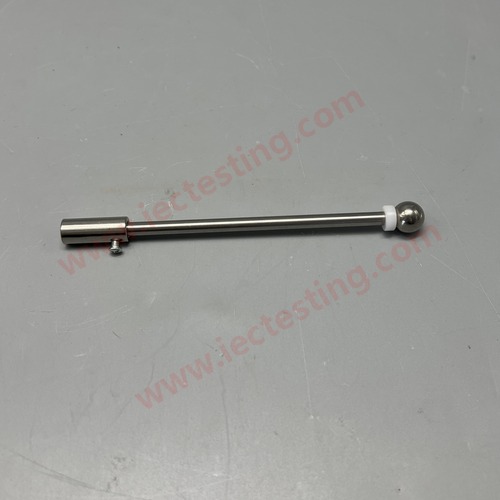

Pictures view:

Test Sphere Probe 2 JY-F62

Test Sphere Probe 2 JY-F62

IEC61032 figure 6 probe 2

IEC61032 figure 6 probe 2
