Conforms To:
Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1:2010.

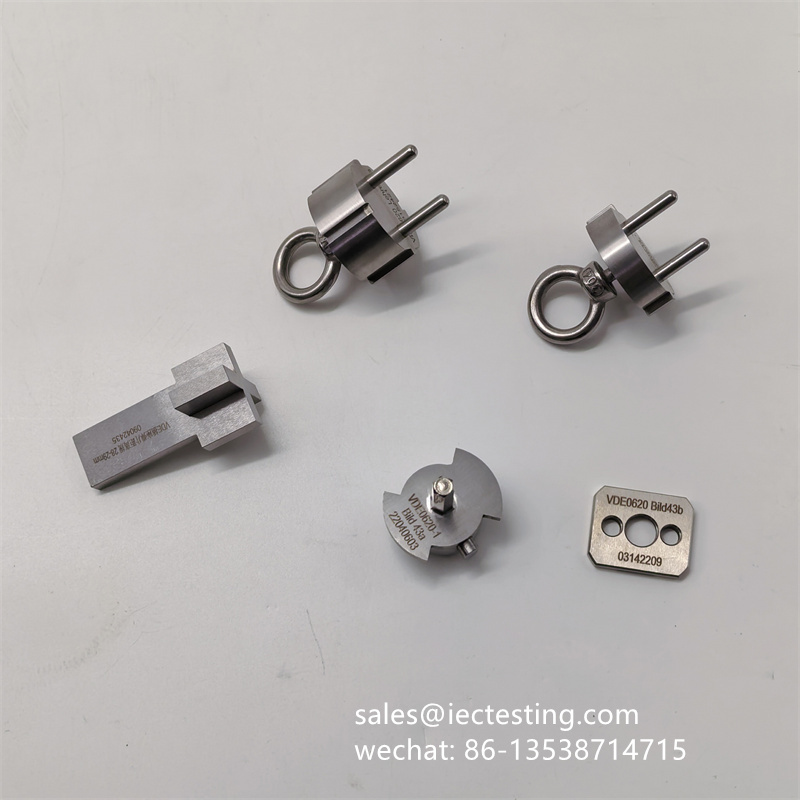

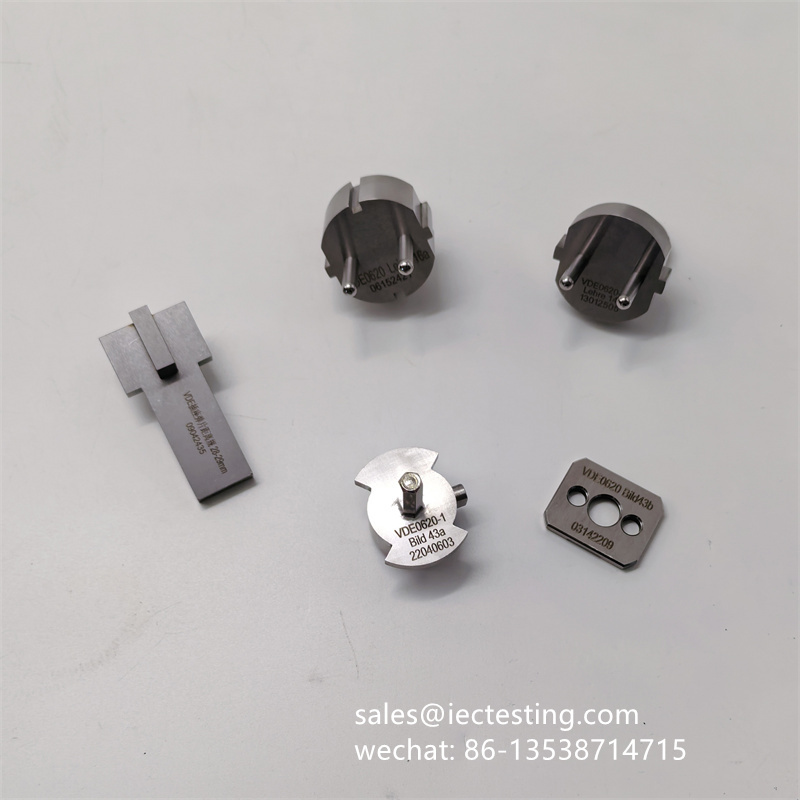

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to VDE0620-1:2010 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
|
no. |
gauge name |
specification |
|
1 |
this test device is developed in accordance with din vde0620-1:2010, section 10.6.1, and the relevant standards of lehre 14. |
|
|
2 |
on both sides of the ground test |
|
|
3 |

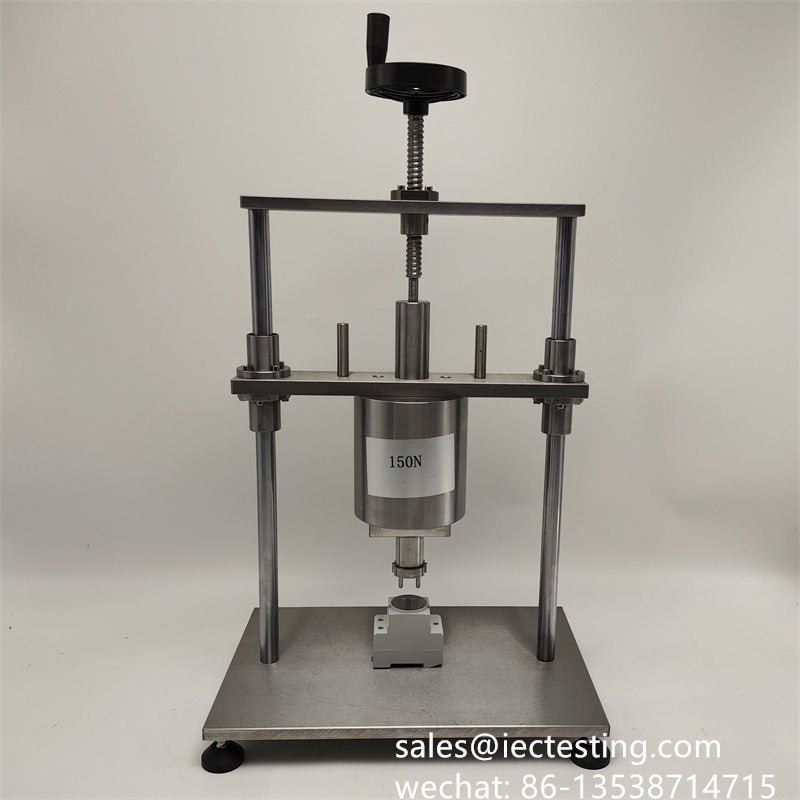

the maximum pullout force plug (16a) |
vde0620 lehre16a |
|
4 |
vorrichtung zur prüfung der seitlichen schutzkontakte |
vde0620-1-bild43 |
|
5 |
grounding horn 28-29 gauge |
grounding terminal spring distance gauge |
