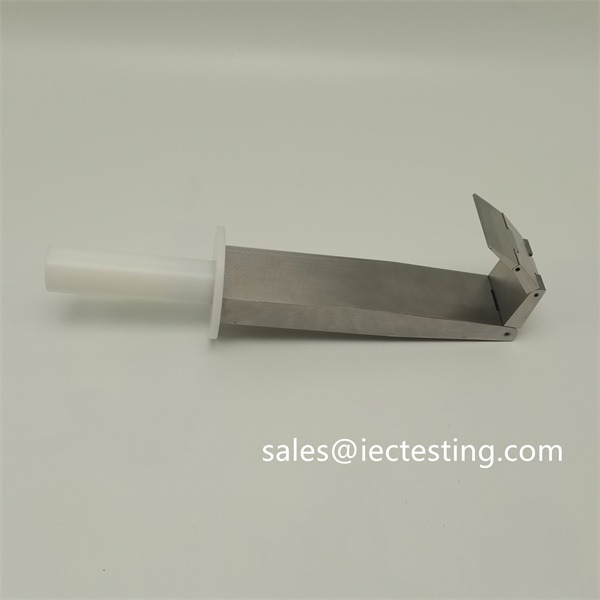

IEC 62368-1 2018 Clause 5.3.2, V.1.5 Figure V.4 Stainless Steel Wedge Probe (SC-UL14)
Product Information:
The wedge-shaped probe complies with IEC 62368-1: 2018 articles 5.3.2, 8.5.4.3, V.1.5 and Figure V.4, IEC 60950-1 Figure naif2 (S5366) and Naf3 (S5370), BS 60950.1108 / 260 / CD and other standard requirements.
Used to test whether the slot can be touched by a person. The test sample includes information technology equipment.
Technical Parameters:
|
Applied standard |
IEC 62368-1 |
|
Applied clause |
5.3.2, V.1.5 and figure V.4 |
|
Probe material |
Stainless steel |
|
Applied Specimen |
Document/media Shredders |
Part of Dimension:
The thickness of the probe varies linearly, with slope changes at the following points along the probe:
|
Distance from probe tip, mm |
Probe thickness, mm |
|
0 |
2 |
|
12 |
4 |
|
180 |
24 |
