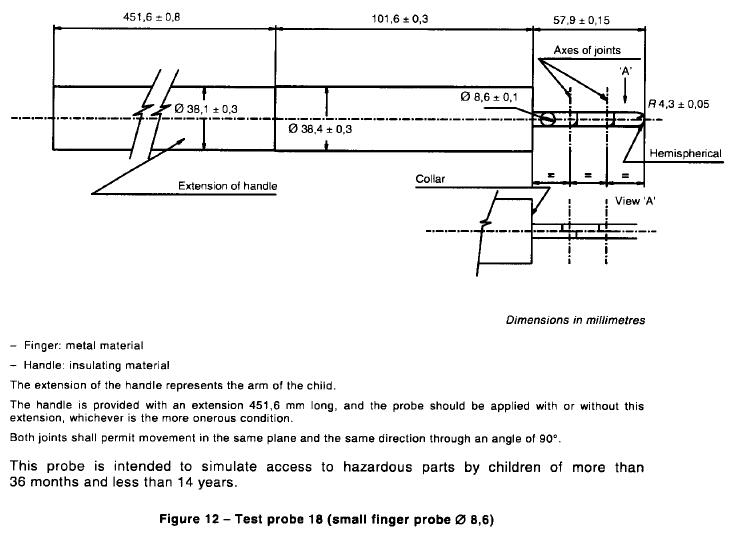

IEC61032 Figure 12 Test probe 18(small finger probe Ф8.6)

IEC61032 Figure 12 Test probe 18(small finger probe Ф8.6)

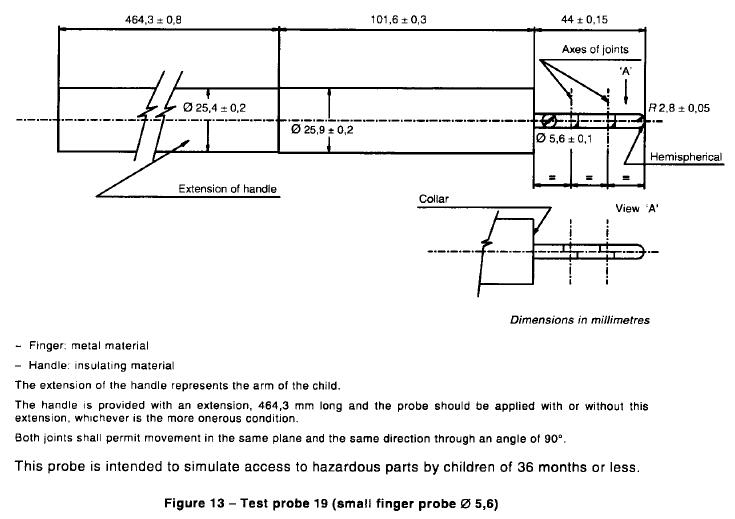

IEC61032 Figure 13 Test probe 19(small finger probe Ф5.6)

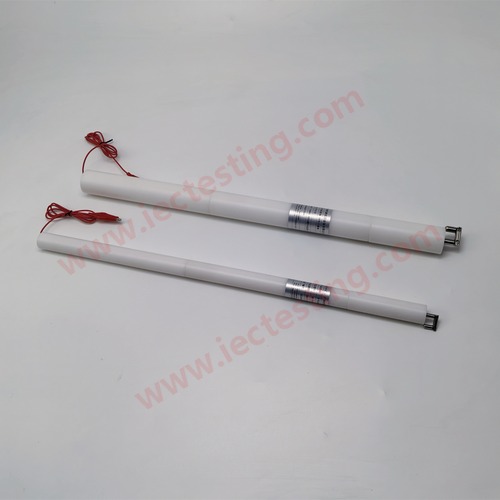

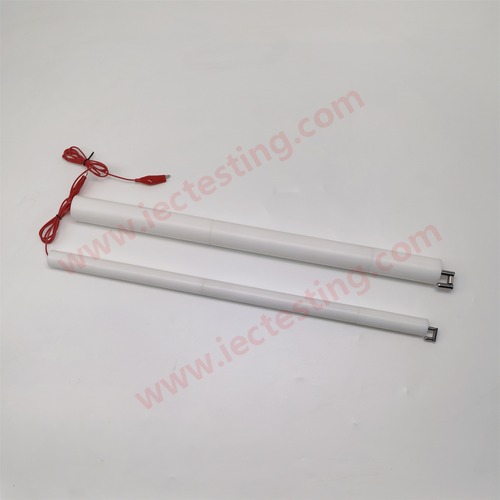

IEC61032 Figure 12 Test probe 18(small finger probe Ф8.6) IEC61032 Figure 12 Test probe 19(small finger probe Ф5.6)

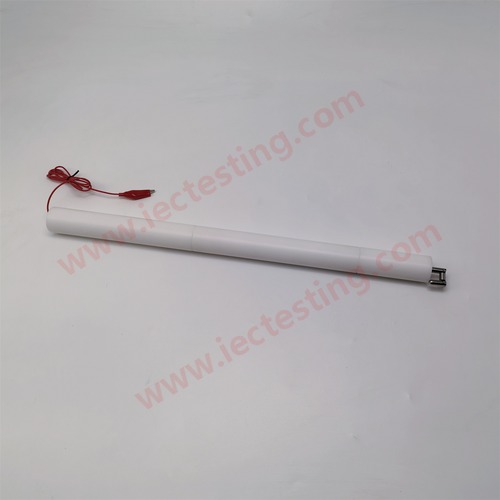

IEC61032 Figure 12 Test probe 18(small finger probe Ф8.6)
IEC61032 Figure 13 Test probe 19(small finger probe Ф5.6)

 Product information:

 Children finger probe JY-F1218 conforms to IEC61032 figure 12 finger probe 18, IEC335.1、UL1017 standards. It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

Children finger probe JY-F1319 conforms to IEC61032 figure 13 finger probe 19, IEC335.1、UL1017 standards. It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.



Main specification and corresponding technical parameters:

Parameters /Model Children’s finger probe JY-F1218 Children’s finger probe JY-F1319
1 R4.3±0.05 R2.8±0.05
2 Ф8.6±0.1 Ф5.6±0.1
3 57.9±0.15 44±0.15
4 19.3 14.67
5 19.3 14.67
6 Ф38.4±0.3 Ф25.9±0.3
7 101.6±0.3 101.6±0.3
8 Ф38.1±0.3 Ф25.4±0.3
9 451.6±0.8 464.3±0.8
