IEC61032 Figure 9 Test probe13, IEC60950 Figure 2B

IEC61032 Figure 9 Test probe13,

IEC61032 Figure 9 Test probe13, IEC60950 Figure 2B

 This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.

test probe13
                                      Test probe13

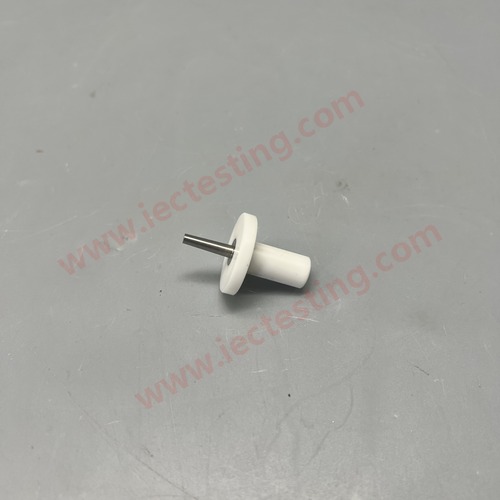

Short Test Pin Probe JY-F913

Product information:

It conforms to IEC61032 Figure 9 Test probe13, IEC60950 Figure 2B, IEC60335 and IEC60065 standard requirements.

Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Main specification and corresponding technical parameters:

Parameters /Model Short test pin probe JY-F913
1 Ф3 0 -0.05
2 Ф4 0 -0.05
3 15 0 -0.1
4 Ф25±0.2
5 4
6 Ф10
7 20
 IEC61032 Figure 9 Test probe13,
IEC61032 Figure 9 Test probe13,
