Jointed and Unjointed Test Finger with Standard IEC 61032
Item No. SC-TB11

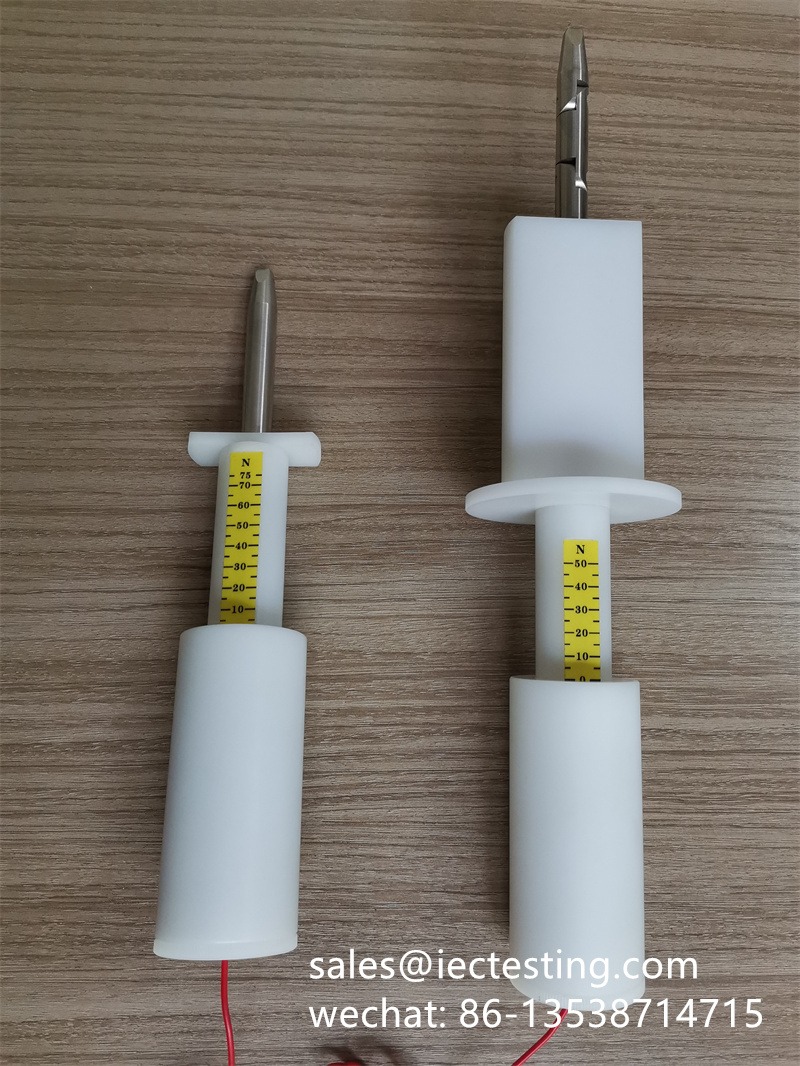

The Jointed Test Finger & Unjointed Test Finger is a precision test probe made according to Figure 2 (Test Probe B) and Figure 7 (Test Probe 11) of the IEC61032 is used to simulate a human finger, used by the standards of IEC, CSA, IRAM, UL etc.

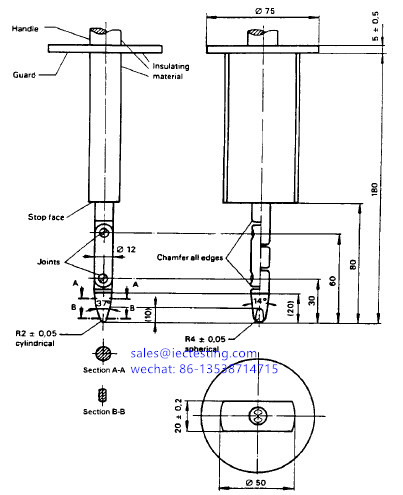

1) IEC Jointed Test Finger 2 ( Test Probe B of IEC61032): Shice No. is SC-F2B-F
Test Probe Diameter: 12 mm
Test Probe Length: 80 mm
Baffle Plate Thickness: 20 mm
Baffle Plate Diameter: 50 mm
Baffle Plate Length: 100 mm

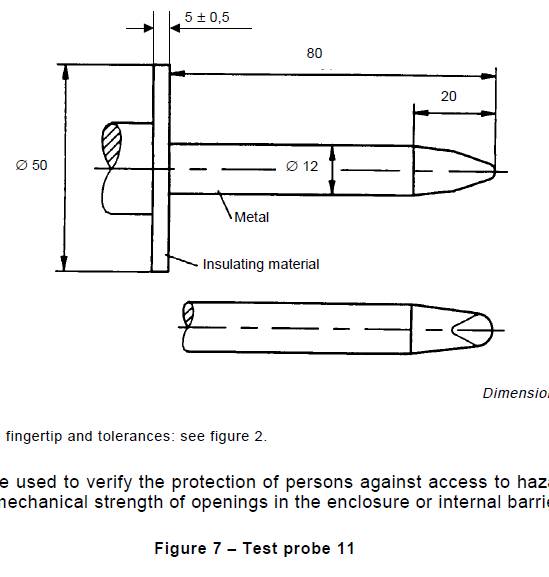

2) IEC Unjointed Test Finger 7 ( Test Probe 11 of IEC61032): Shice No. is SC-F711-F
Test Probe Diameter: 12 mm
Test Probe Length: 80 mm
Baffle Plate Thickness: 5 mm
Baffle Plate Diameter: 50 mm
